Ultra-Met On Edge Milling Blank with Hole, Thickness 0.202 / 0.207 in
Ultra-Met On Edge Milling Blank with Hole, Thickness 0.202 / 0.207 in
SKU:MIL-1d317b
Experience precision and versatility with the Ultra-Met On Edge Milling Blank. Customize grade availability to suit your machining needs.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blank with Hole, Thickness 0.202 / 0.207 in
$39.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blank with Hole, Thickness 0.202 / 0.207 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met On Edge Milling Blank with Hole offers precision and versatility for machining applications. With a thickness of 0.202 / 0.207 in, width of 0.389 / 0.395 in, and a hole size of 0.162 / 0.174 in, this milling blank ensures high-quality results. The 60-degree C/S angle and TO dimension of 0.257 / 0.269 in provide excellent performance. Grade availability can be customized upon request, making it ideal for meeting diverse project requirements.

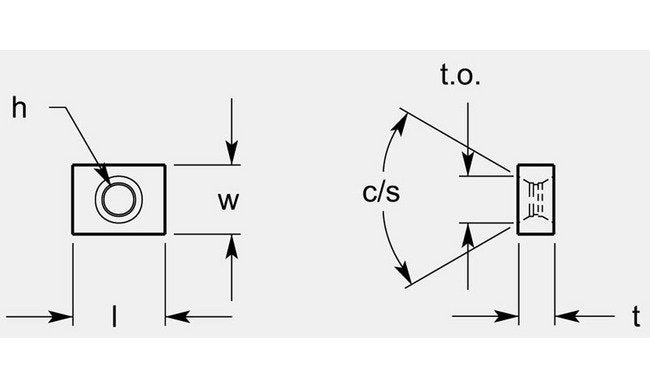

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Cs
60 º
Dimensional Specification Hole
0.162 / 0.174 in
Dimensional Specification L
0.640 / 0.650 in
Dimensional Specification Thickness T
0.202 / 0.207 in
Dimensional Specification To
0.257 / 0.269 in
Dimensional Specification Width W
0.389 / 0.395 in
Grade Availability Grade Availability
Available on Request
