Ultra-Met On Edge Milling Blanks with Hole, 0.185/0.191 in
Ultra-Met On Edge Milling Blanks with Hole, 0.185/0.191 in
SKU:MIL-536fbd
Premium Ultra-Met On Edge Milling Blanks for precise machining applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blanks with Hole, 0.185/0.191 in
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blanks with Hole, 0.185/0.191 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

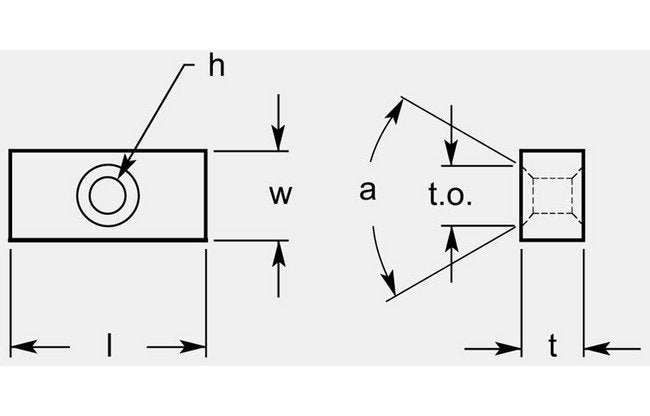

The Ultra-Met On Edge Milling Blanks with Hole offer exceptional precision with a thickness range of 0.185 to 0.191 inches, a width range of 0.389 to 0.395 inches, and hole diameter variations from 0.201 to 0.205 inches. With an optimized design featuring an 82-degree angle and lengths between 0.640 to 0.650 inches, these blanks ensure high-performance milling operations. Grade availability is customizable upon request, catering to diverse industrial needs.
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
82 º
Dimensional Specification Hole
0.201 / 0.205 in
Dimensional Specification L
0.640 / 0.650 in
Dimensional Specification Thickness T
0.185 / 0.191 in
Dimensional Specification To
0.306 / 0.316 in
Dimensional Specification Width W
0.389 / 0.395 in
Grade Availability Grade Availability
Available on Request
