Ultra-Met On Edge Milling Blanks with Hole, 0.200/0.208 in Thickness
Ultra-Met On Edge Milling Blanks with Hole, 0.200/0.208 in Thickness
SKU:MIL-e68c08
Optimize your milling projects with Ultra-Met On Edge Blanks, 0.200/0.208 in thickness. Custom grades available upon request.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blanks with Hole, 0.200/0.208 in Thickness
$49.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blanks with Hole, 0.200/0.208 in Thickness
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

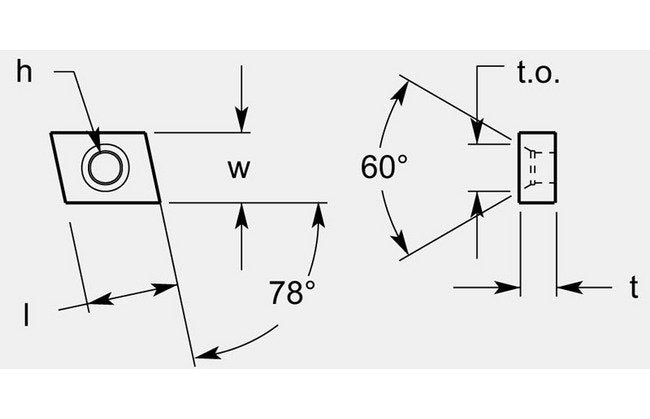

The Ultra-Met On Edge Milling Blanks with Hole offer precise dimensional specifications including a thickness of 0.200/0.208 inches, width of 0.385/0.395 inches, and a hole diameter of 0.162/0.174 inches. With an optimized angle of 78 degrees and lengths of 0.510/0.522 inches, these blanks are ideal for accurate milling applications. Grade availability can be customized based on specific requirements, ensuring compliance with a wide range of industry standards and procurement specifications.
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
78 º
Dimensional Specification Hole
0.162 / 0.174 in
Dimensional Specification L
0.510 / 0.522 in
Dimensional Specification Thickness T
0.200 / 0.208 in
Dimensional Specification To
0.257 / 0.269 in
Dimensional Specification Width W
0.385 / 0.395 in
Grade Availability Grade Availability
Available on Request
