Ultra-Met On Edge Milling with Hole, 0.305/0.311 in
Ultra-Met On Edge Milling with Hole, 0.305/0.311 in
SKU:MIL-6825ec
Ultra-Met On Edge Milling with Hole, Precision-Crafted for Industrial Excellence
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling with Hole, 0.305/0.311 in
$49.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling with Hole, 0.305/0.311 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met On Edge Milling with Hole offers precise dimensions of 0.305/0.311 in thickness, 0.447/0.453 in width, and features a 40° angle for accurate milling results. Crafted to meet rigorous specifications, this milling blank ensures consistent performance and reliability, making it ideal for industrial applications that demand precision and quality. With Grade Availability on request, this product caters to diverse machining needs in various sectors.

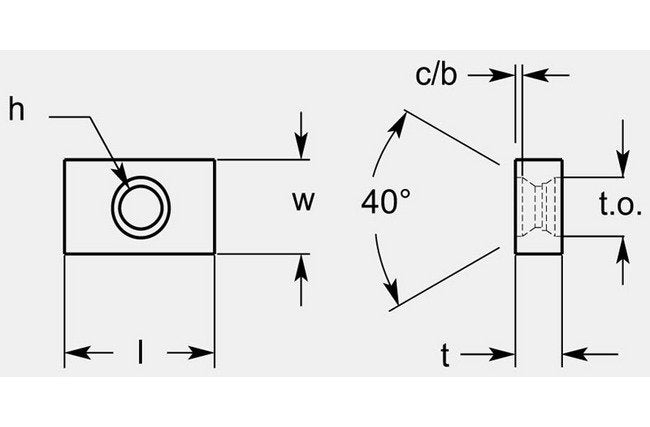

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
40 º
Dimensional Specification Cb
0.053 / 0.059 in
Dimensional Specification Hole
0.172 / 0.182 in
Dimensional Specification L
0.514 / 0.520 in
Dimensional Specification Thickness T
0.305 / 0.311 in
Dimensional Specification To
0.223 / 0.233 in
Dimensional Specification Width W
0.447 / 0.453 in
Grade Availability Grade Availability
Available on Request
