Ultra-Met Square Negative with Hole, 0.104/0.112 in Thickness
Ultra-Met Square Negative with Hole, 0.104/0.112 in Thickness
SKU:TUR-b38744
High-quality Ultra-Met Square Negative with Hole, 0.104/0.112 in Thickness, optimum for precision machining applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ultra-Met Square Negative with Hole, 0.104/0.112 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
Ultra-Met Square Negative with Hole, 0.104/0.112 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met Square Negative with Hole is a high-quality turning blank designed for precision machining applications. With a thickness range of 0.104 to 0.112 inches, an inscribed circle of 0.264 to 0.270 inches, and a 90-degree angle, this blank offers exceptional dimensional accuracy. The included hole, with a size of 0.102 to 0.108 inches, provides added versatility for various machining requirements. Available in different grades upon request, this product ensures reliable performance and compliance with stringent industry standards.

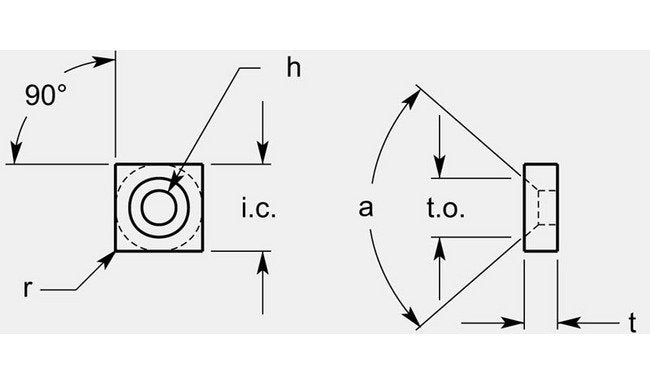

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.102 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.104 / 0.112 in
Dimensional Specification To
0.185 / 0.191 in
Grade Availability Grade Availability
Available on Request
