Ultra-Met Square Negative with Hole, 0.131/0.141 in
Ultra-Met Square Negative with Hole, 0.131/0.141 in
SKU:TUR-a9750f
Premium Ultra-Met Square Negative with Hole, 0.131/0.141 in - Ideal for precision machining tasks.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met Square Negative with Hole, 0.131/0.141 in
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met Square Negative with Hole, 0.131/0.141 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

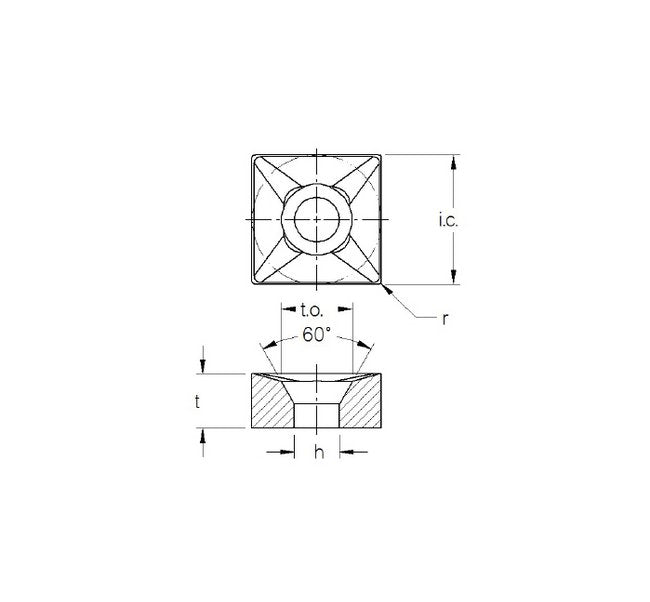

The Ultra-Met Square Negative with Hole boasts a precise thickness range of 0.131/0.141 inches, an Inscribed Circle of 0.322/0.332 inches, and a Hole diameter of 0.108/0.118 inches. Crafted for turning blanks, this tool offers exceptional durability and accuracy for machining operations. Compliant with Federal/DoD procurement standards, it meets stringent requirements for quality and performance.
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
s º
Dimensional Specification Hole
0.108/0.118 in
Dimensional Specification Inscribed Circle Ic
0.322/0.332 in
Dimensional Specification Radius R
0.003/0.013 in
Dimensional Specification Thickness T
0.131/0.141 in
Dimensional Specification To
0.173/0.183 in
