Ultra-Met Square Negative with Hole, 0.135-0.143 in
Ultra-Met Square Negative with Hole, 0.135-0.143 in
SKU:TUR-a25145
Precision-crafted Ultra-Met Square Negative with Hole, optimal for machining applications. Thickness: 0.135-0.143 in
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ultra-Met Square Negative with Hole, 0.135-0.143 in
$39.99
Quantity: 1
Claim Your Seller Account
Ultra-Met Square Negative with Hole, 0.135-0.143 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met Square Negative with Hole is a premium turning blank designed for superior precision and durability. With a thickness range of 0.135 to 0.143 inches, an inscribed circle of 0.514 to 0.520 inches, and a precise 90-degree angle, this turning blank ensures optimal performance in machining applications. The integrated hole measuring 0.200 to 0.206 inches adds versatility for various turning requirements. Available on request, this turning blank is crafted to meet the highest industry standards for efficiency and reliability.

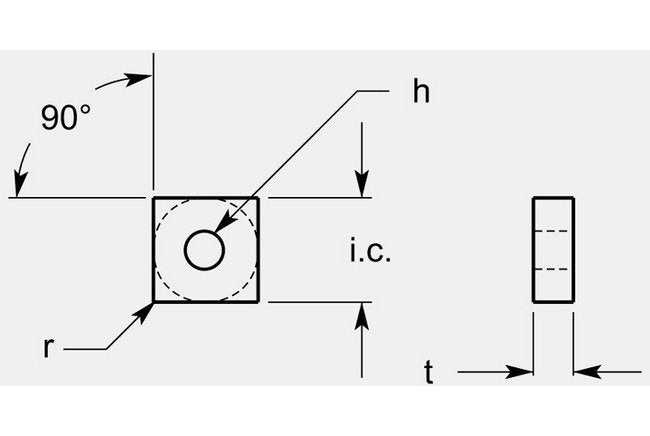

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Grade Availability Grade Availability
Available on Request
