Ultra-Met Square Negative with Hole, 0.145 / 0.152 in
Ultra-Met Square Negative with Hole, 0.145 / 0.152 in
SKU:TUR-eab6dd
Premium Ultra-Met Square Negative with Hole, ideal for precision machining. Thickness: 0.145 / 0.152 in.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ultra-Met Square Negative with Hole, 0.145 / 0.152 in
$49.99
Quantity: 1
Claim Your Seller Account
Ultra-Met Square Negative with Hole, 0.145 / 0.152 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

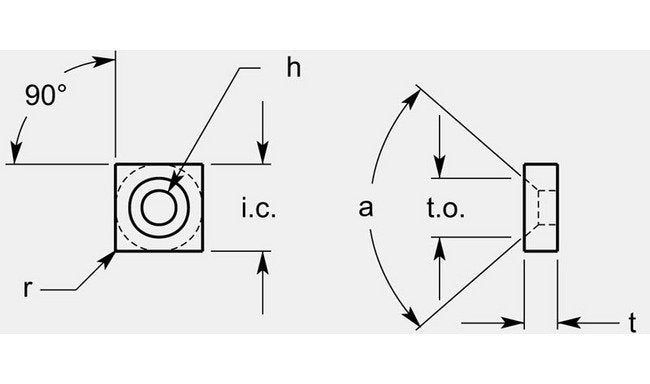

The Ultra-Met Square Negative with Hole, with a thickness ranging from 0.145 to 0.152 inches, is a premium turning blank designed for precision machining applications. Crafted with exceptional dimensional accuracy, this product features an Inscribed Circle of 0.514 to 0.520 inches, a Hole diameter of 0.175 to 0.181 inches, and a zero Radius. With a standard Angle of 90 degrees and a specialized Angle (a) of 82 degrees, this grade is readily available upon request. Engineered to meet the highest industry standards, this turning blank ensures reliable performance and durability in manufacturing processes.
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.175 / 0.181 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.145 / 0.152 in
Dimensional Specification To
0.373 / 0.379 in
Grade Availability Grade Availability
Available on Request
