Ultra-Met Square Negative with Hole, 0.201/0.207 in
Ultra-Met Square Negative with Hole, 0.201/0.207 in
SKU:TUR-3120dd
Precision Ultra-Met Square Negative for turning blanks with optimal thickness and hole size. Grade customization available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met Square Negative with Hole, 0.201/0.207 in
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met Square Negative with Hole, 0.201/0.207 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met Square Negative with Hole is a high-quality turning blank designed for precision machining applications. With a thickness of 0.201/0.207 inches, an inscribed circle of 0.485/0.495 inches, and a 90-degree angle, this product ensures accurate and efficient turning operations. The included hole of 0.285/0.293 inches allows for enhanced versatility. Grade availability can be requested to meet specific project requirements.

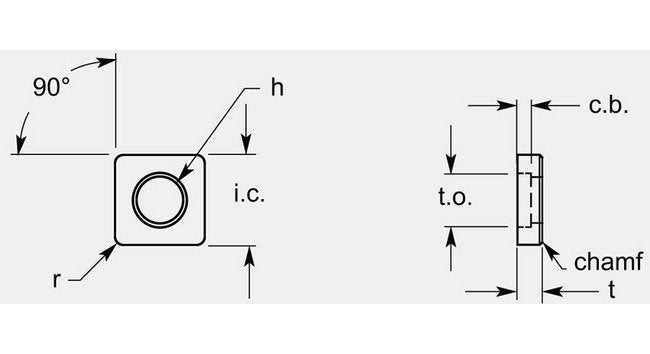

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.108 / 0.116 in
Dimensional Specification Chamf
0.036 in x 45°
Dimensional Specification Hole
0.285 / 0.293 in
Dimensional Specification Inscribed Circle Ic
0.485/0.495 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.201 / 0.207 in
Dimensional Specification To
0.311 / 0.323 in
Grade Availability Grade Availability
Available on Request
