Ultra-Met Square Negative with Hole, 0.260-0.268 in Thickness
Ultra-Met Square Negative with Hole, 0.260-0.268 in Thickness
SKU:TUR-ae5b81
Premium Ultra-Met Square Negative: 0.260-0.268 in thickness, superior precision for turning operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met Square Negative with Hole, 0.260-0.268 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met Square Negative with Hole, 0.260-0.268 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

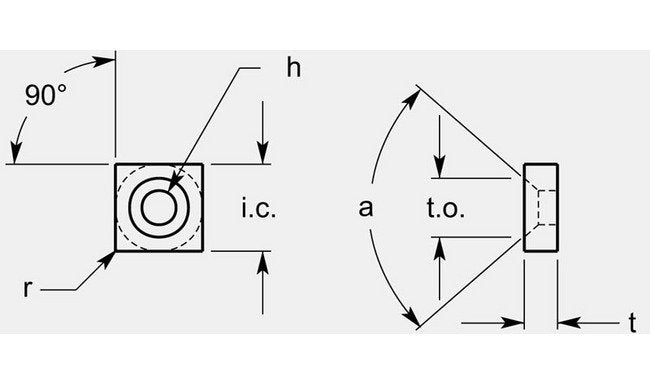

The Ultra-Met Square Negative with Hole is a precision-engineered turning blank designed for efficiency and durability. With a thickness range of 0.260-0.268 inches, an inscribed circle of 0.514-0.520 inches, and a hole diameter of 0.175-0.181 inches, this grade A blank ensures high performance in machining operations. Crafted with a 90º angle and zero radius, it offers exceptional accuracy. Grade availability can be customized upon request to meet specific project needs.
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.175 / 0.181 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Dimensional Specification To
0.373 / 0.379 in
Grade Availability Grade Availability
Available on Request
