Ultra-Met Square Negative with Hole, Thickness 0.135 / 0.143 in
Ultra-Met Square Negative with Hole, Thickness 0.135 / 0.143 in
SKU:TUR-7edb19
Ultra-Met Square Negative with Hole, 0.135 / 0.143 in thickness. Ideal for precision turning operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met Square Negative with Hole, Thickness 0.135 / 0.143 in
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met Square Negative with Hole, Thickness 0.135 / 0.143 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met Square Negative with Hole boasts a precise thickness of 0.135 / 0.143 in, ensuring accuracy and durability in turning operations. Crafted for turning blanks, this product features an inscribed circle of 0.514 / 0.520 in, a 90° angle, and a hole diameter of 0.123 / 0.129 in. Grade Availability: Available on Request. This square negative with hole is designed to meet the stringent standards of government and institutional procurement, making it a reliable choice for industrial applications.
Product Specifications
Classifications Brands
Ultra-Met®

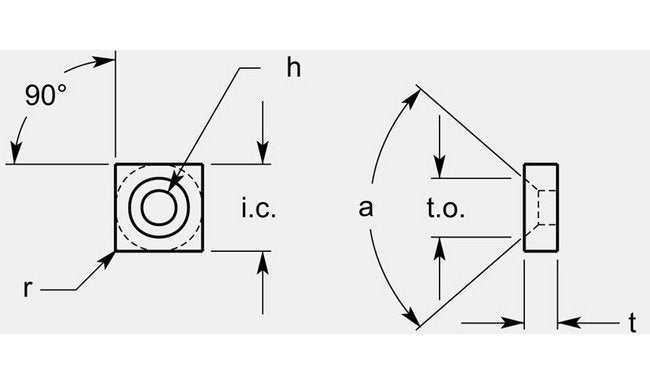

Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.123 / 0.129 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Dimensional Specification To
0.267 / 0.273 in
Grade Availability Grade Availability
Available on Request
