Ultra-Met Tungsten Carbide Grades
Ultra-Met Tungsten Carbide Grades
SKU:STA-96c29a
High-quality Tungsten Carbide grades for precision machining applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Ultra-Met Tungsten Carbide Grades
$79.99
Quantity: 1
Claim Your Seller Account
Ultra-Met Tungsten Carbide Grades
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met Grade Designations in Tungsten Carbide offer exceptional quality with a composition of 89.50% Tungsten Carbide, making them ideal for machining cast iron, non-ferrous, and non-metallic materials. With a hardness of 92.0 HRA and a density of 14.73 g/cc, these grades ensure superior performance and durability. Trust in the reliability of the 6.25% Cobalt and 4.25% Tantalum Carbide composition for consistent results in general machining applications.
Product Specifications

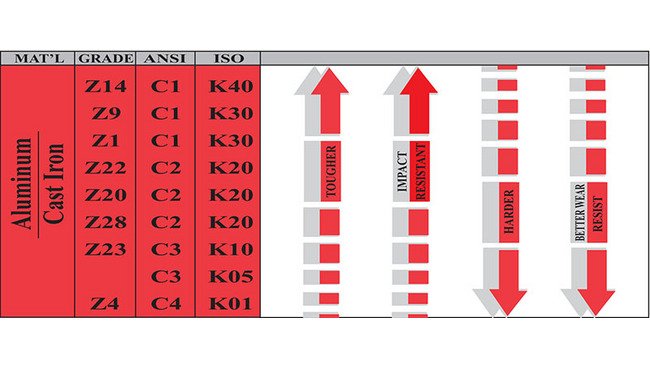

Classifications Ansi Code
C2
Classifications Applications
General Purpose (Machining - Cast Iron, Non-Ferrous, and Non-Metalic Materials)
Classifications Grades
Tungsten Carbide
Classifications Grain Size
Fine
Classifications Iso Code
K20
Nominal Composition Cobalt Co
6.25%
Nominal Composition Niobium Carbide Nbc
4.25%
Nominal Composition Tantalum Carbide Ta
4.25%
Nominal Composition Tungsten Carbide Wc
89.50%
Physical Properties Density
14.73 g/cc
Physical Properties Hardness Hra
92.0 Ra
Physical Properties Transverse Rupture Trs
340 ksi | 340000 psi
