Ultra-Met Tungsten Carbide Grades

Name: Ultra-Met Tungsten Carbide Grades
Brand: Ultra-Met
SKU: STA-20207d
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-20207d

Premium Tungsten Carbide grade for precision machining on diverse materials. ANSI & ISO certified, extra-fine grain size.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ultra-Met Grade Designations Tungsten Carbide offers exceptional quality and precision for light finishing and machining applications on various materials. With an ANSI Code of C3/C4 and ISO Code of K01, this grade features an extra-fine grain size, a nominal composition of 96.25% Tungsten Carbide and 3.75% Cobalt (CO), and impressive physical properties like 92.8 Ra hardness, density of 15.18 g/cc, and 275 ksi transverse rupture strength. Ideal for precision finishing tasks, this grade ensures consistency and reliability in machining operations.

Product Specifications

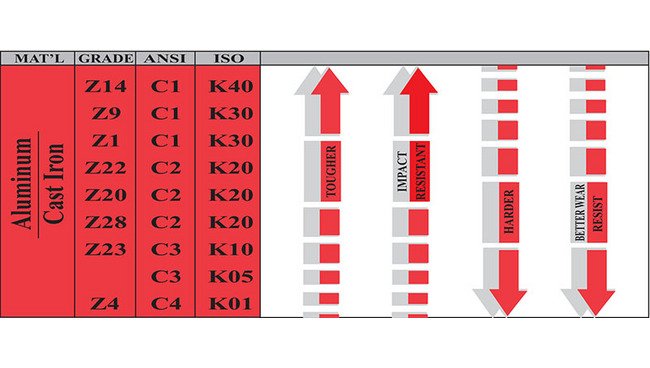

Classifications Ansi Code

C3/C4

Classifications Applications

Light Finishing and Precision Finishing (Machining - Cast Iron, Non-Ferrous, and Non-Metalic Materials)

Classifications Grades

Tungsten Carbide

Classifications Grain Size

Extra Fine

Classifications Iso Code

K01

Nominal Composition Cobalt Co

3.75%

Nominal Composition Tungsten Carbide Wc

96.25%

Physical Properties Density

15.18 g/cc

Physical Properties Hardness Hra

92.8 Ra

Physical Properties Transverse Rupture Trs

275 ksi | 275000 psi
