Ultra-Met® Square Negative with Hole, Thickness 0.267 / 0.275 in
Ultra-Met® Square Negative with Hole, Thickness 0.267 / 0.275 in
SKU:TUR-77203b
Precision and durability in Ultra-Met® Square Negative with customizable grade options. Thickness: 0.267-0.275 in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met® Square Negative with Hole, Thickness 0.267 / 0.275 in
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met® Square Negative with Hole, Thickness 0.267 / 0.275 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

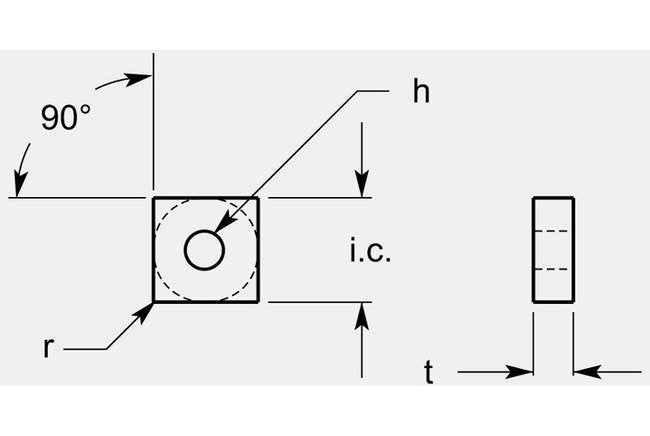

Achieve precision and durability with the Ultra-Met® Square Negative with Hole. This turning blank boasts a thickness range of 0.267 to 0.275 inches, an inscribed circle of 1.020 to 1.030 inches, a 90º angle, and a hole diameter of 0.247 to 0.253 inches. Grade availability can be tailored per request, ensuring suitability for diverse applications.
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
1.020/1.030 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.267 / 0.275 in
Grade Availability Grade Availability
Available on Request
