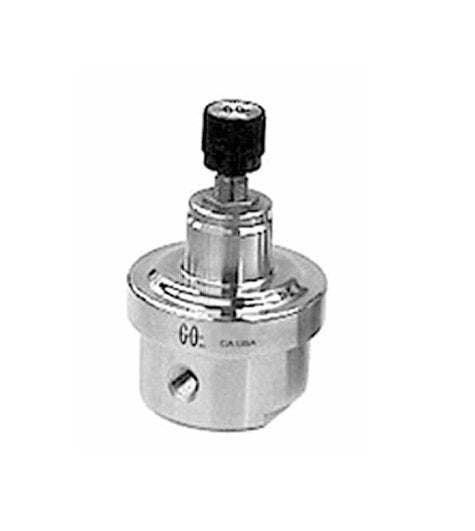

Ultra Precise Single Stage Pressure Reducing Regulators
Ultra Precise Single Stage Pressure Reducing Regulators
SKU:GOP-553ee8
Achieve ultra precise low outlet pressure control with PR-7ULF Series Pressure Reducing Regulators, ideal for analytical instrumentation.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Ultra Precise Single Stage Pressure Reducing Regulators
$289.99
Quantity: 1
Claim Your Seller Account
Ultra Precise Single Stage Pressure Reducing Regulators
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PR-7ULF Ultra Precise Single Stage Pressure Reducing Regulators by GO Regulator, Inc. provide unparalleled low outlet pressure control for analytical instrumentation. Constructed with 316L Stainless Steel body material, these regulators ensure durability and precision. Featuring a super low flow valve seat assembly and a large diaphragm sensing area, the PR-7ULF Series enables pressure control down to 1 inch of water at 2cc of flow. With a 0.004 Cv flow coefficient, Fluorocarbon (FKM) diaphragm, and bubble-tight shutoff, these regulators offer reliable and accurate performance. The fine adjust cap assembly and 1/2" Panel Mount design enhance usability and installation ease.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel or Brass (alloy 360) constructionPolytetrafluoroethylene (PTFE) / Fluorocarbon (FKM) diaphragmBubble-tight shutoffFluorocarbon (FKM) seat0.004 Cv flow coefficient
Note Note
Contact the factory for any additional requirements.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Fine Adjust, 1/2" Panel Mount, Stainless Steel
Specifications Diaphragm Material
Fluorocarbon (FKM)
Specifications Diaphragm Type
Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet Filter
20 µm
Specifications Output Range
0 to 25 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Type Of Service
Gas
Specifications Vent Valve
No
Specifications Weight
3.2 lb | 1.45 kg
