Ultra Precision 2-Axis Inclinometer
Ultra Precision 2-Axis Inclinometer
SKU:INC-6eb39d
Achieve precision leveling and angle measurement with the Ultra Precision 2-Axis Inclinometer by Digi-Pas. Accredited calibration for high accuracy.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Ultra Precision 2-Axis Inclinometer
$549.99
Quantity: 1
Claim Your Seller Account
Ultra Precision 2-Axis Inclinometer
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

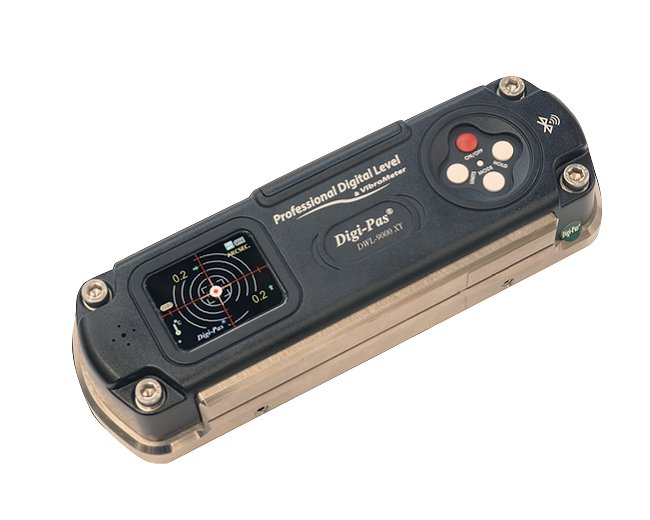

The Ultra Precision 2-Axis Inclinometer by Digi-Pas is an advanced instrument designed for precision leveling, angle measurement, and surface flatness profiling tasks. With a measuring range of 0.0 to 7200 arcsec for Single Axis and 0.0 to 3600 arcsec for Dual Axis, this inclinometer offers unparalleled accuracy of ±0.6 arcsec at 0 to ±100 arcsec. It features a 3D surface geometry graph using PC-Sync Software, enabling high accuracy surface flatness profile measurement, and a digital color graphic display of dual angles. The DWL-9000XY instrument is accredited by third-party calibration bodies and National Metrology Centre, ensuring compliance with international standards such as NIST, JIS, UKAS, and DIN.
Product Specifications
Additional Information Additional Information
Angular meter display real-time 2-Axis angle graphWireless Bluetooth Industrial Class 1 (>30 Meters)Professional PC Sync Software with wireless Bluetooth or USB-cable connection to device for remote acquisition and data logging,USB external power source3-points contact base for most stable surface-to-surface contact to prevent "rocking"Vibrometer display real time low-frequency (2 to 75Hz) vibration graph
Technical Specs 3d Surface Geometry Profile Graph
Enable user to perform surface flatness geometry measurement in 3-Dimensional visual graph when in Synchronization with PC using PC-Sync software.
Technical Specs Absolute Level Setting
Enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.
Technical Specs Accreditation
DWL-9000XY instrument accuracy is verified by accredited 3rd party independent calibration & test bodies and National Metrology Centre traceable to SI standard and NIST, JIS, UKAS & DIN under CIPM MRA.
Technical Specs Alternate Zero Setting
Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature.
Technical Specs Anglemeter
Built-in Anglemeter for Real-time Angle monitoring, data logging & analysis. Graphical display of real-time measuring data on device TFT LCD screen.
Technical Specs Brands
Digi-Pas
Technical Specs Digi Pas Level App Smartphonetablet Upcoming
Users may fully utilize remote wireless Bluetooth mobile connectivity features for 2-Axis Precision Digital Leveling activities.
Technical Specs Dual Angle Display
Dual-Axis (X-Y) colour graphic display of angular & vibration measurements Real-time Digital & Analog display for angles & vibration monitoring, data logging & analysis
Technical Specs Operating Temperature
50 to 104 ºF | +10 to +40 ºC
Technical Specs Pc Sync Software Professional Edition
Enable advance features for Remote Data Logging, Processing & Analysis on Angular Measurements. Specifically for precision machine operation performance optimization.
Technical Specs Speed Precision And Effectiveness
Precision leveling, angle measurement/alignment and surface flatness profiling tasks essentially involve 2-dimensional planes rather than single-axis. Thus, 2-axis simultaneous display of surface plane angles readings are required to effectively guide eng
Technical Specs Supported Software Android
4.4 and Above
Technical Specs Supported Software Ios
8.0 and Above
Technical Specs Ultra Precision Angle Measurement
Ultra high resolution of 0.2 arcsec. angular measurement. Wireless Bluetooth/USB PC links for remote data logging capability. Graphical display of real-time measuring data on device TFT LCD screen.
Technical Specs Usb Link To Pc
USB connection for remote acquisition, monitoring, data logging & analysis in computer.
Technical Specs Vibrometer
Built-in Vibrometer for Real-time vibration monitoring, data logging & analysis. Graphical display of real-time measuring data on device TFT LCD screen. Vibrometer feature allows user to track, monitor, record & analyze vibration patterns in numeric and g
Technical Specs Wireless Connectivity
Wireless connection (Bluetooth industrial class 1) to device for remote monitoring, data logging & analysis from computer using PC Sync Pro. Software. User may also use SMARTPHONE to connect to the device using Digi-Pas App (Optional).
