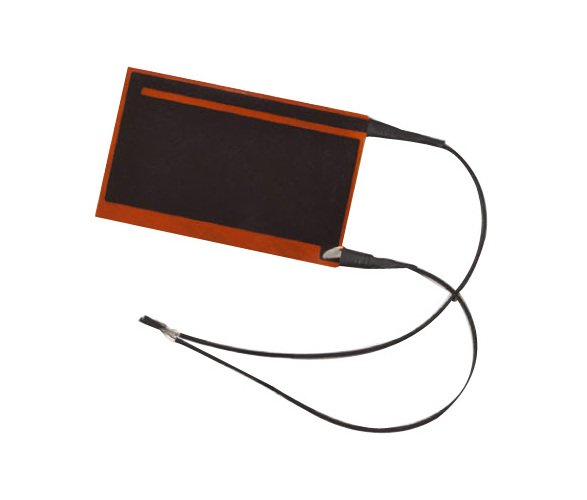

• Ultra-Thin 4.2V Rectangular Flexible Heater - Image 1
  • Ultra-Thin 4.2V Rectangular Flexible Heater - Image 2
  • Ultra-Thin 4.2V Rectangular Flexible Heater - Image 3
  • Ultra-Thin 4.2V Rectangular Flexible Heater - Image 4
  • Ultra-Thin 4.2V Rectangular Flexible Heater - Image 5
1 5
Pelonis Technologies, Inc. →

Ultra-Thin 4.2V Rectangular Flexible Heater

Ultra-Thin 4.2V Rectangular Flexible Heater

ULT-ce00c7

High-performance 4.2V Rectangular Flexible Heater with 0.67 W/cm² power density and 1A current. Nano Carbon & Silicon construction. CE, CRU®US, RoHS compliant.

$69.99
$69.99
Sale

Initiate Order

Ultra-Thin 4.2V Rectangular Flexible Heater

Ultra-Thin 4.2V Rectangular Flexible Heater

$69.99

Quantity: 1

Claim Your Seller Account

Ultra-Thin 4.2V Rectangular Flexible Heater

Ultra-Thin 4.2V Rectangular Flexible Heater

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Ultra-Thin 4.2V Rectangular Flexible Heater by Pelonis Technologies offers exceptional performance with a power density of 0.67 W/cm² and a current rating of 1A. Crafted from Nano Carbon and Silicon, this heater boasts a resistance of 4.21 Ohm and a power output of 4.19 Watts. With industry-standard certifications including CE, CRU®US, and RoHS compliance, this heater ensures safe and efficient operation. The 25mm x 25mm dimensions make it versatile for various applications while the 210mm lead wire length provides flexibility in installation.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note
If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
1 A
Specifications Dc Voltage
4.2 V
Specifications Heater Material
Nano Carbon | Silicon
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant
Specifications Lead Wire Length
210 mm
Specifications Length
25 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
4.19 Watts
Specifications Power Density
0.67 W/cm²
Specifications Reference Temperature Rise
120 ºC
Specifications Resistance
4.21 Ohm
Specifications Shape
Rectangular
Specifications Type
Nano Carbon (STANDARD)
Specifications Width
25 mm
