Ultra-Thin 5V Rectangular Flexible Heater
Ultra-Thin 5V Rectangular Flexible Heater
SKU:ULT-a69811
Stay warm with the efficient Ultra-Thin 5V Rectangular Flexible Heater. Nano Carbon technology ensures safe and reliable operation.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ultra-Thin 5V Rectangular Flexible Heater
$39.99
Quantity: 1
Claim Your Seller Account
Ultra-Thin 5V Rectangular Flexible Heater
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliable and efficient heating with the Pelonis Technologies Ultra-Thin 5V Rectangular Flexible Heater. With a power density of 0.50 W/cm² and a current of 0.5A, this heater offers consistent performance. It is CE and CRU®US Recognized, RoHS compliant, and designed with Nano Carbon and Silicon materials for durability and safety.
Product Specifications
Note Note
If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
0.5 A
Specifications Dc Voltage
5 V
Specifications Heater Material
Nano Carbon | Silicon
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant

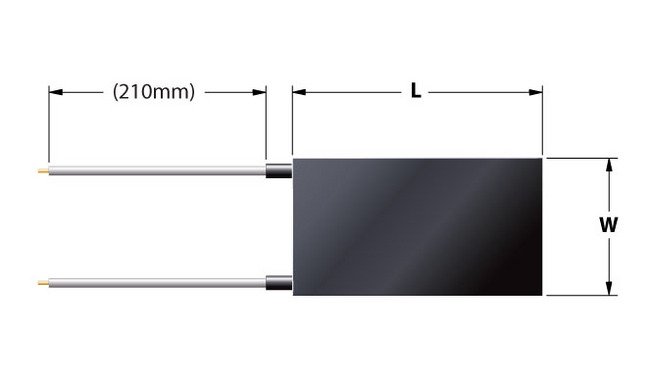

Specifications Lead Wire Length
210 mm
Specifications Length
25 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
2.5 Watts
Specifications Power Density
0.5 W/cm²
Specifications Reference Temperature Rise
90 ºC
Specifications Resistance
10 Ohm
Specifications Shape
Rectangular
Specifications Type
Nano Carbon (STANDARD)
Specifications Width
20 mm
