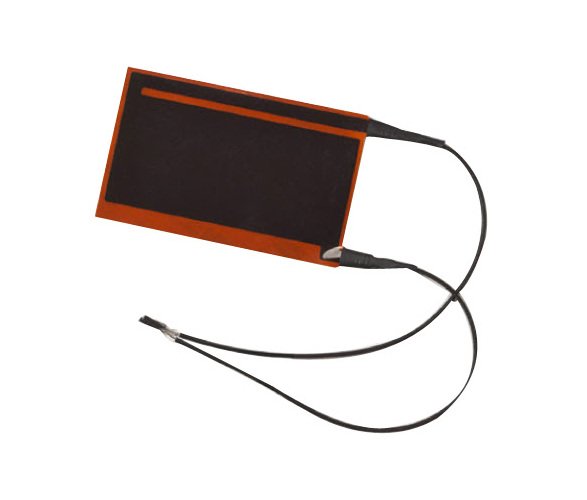

Upgrade your heating solutions with the ultra-thin and flexible 5V Rectangular Heater. With a power density of 0.13 W/cm² and current of 0.53A, this heater offers efficient and uniform heat distribution. Made with Nano Carbon and Silicon materials, it meets CE, CRUUS, RoHS, and Reach standards for safety and quality assurance. Ideal for various applications requiring precise and reliable heating.
Product Specifications
Note Note
Standard Model. The delivery time for this model is shorter.If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
0.53 A
Specifications Dc Voltage
5 V
Specifications Heater Material
Nano Carbon | Silicon
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant

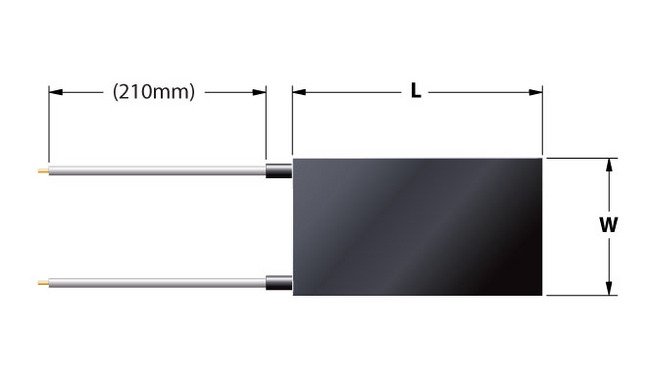

Specifications Lead Wire Length
210 mm
Specifications Length
63 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
2.66 Watts
Specifications Power Density
0.13 W/cm²
Specifications Reference Temperature Rise
30 ºC
Specifications Resistance
9.41 Ohm
Specifications Shape
Rectangular
Specifications Type
Nano Carbon (STANDARD)
Specifications Width
32 mm
