Ultra-Thin 5V Rectangular Flexible Heater
Ultra-Thin 5V Rectangular Flexible Heater
SKU:ULT-d6500c
Efficient and safe 5V Rectangular Flexible Heater with Nano Carbon technology, 1.40 W/cm² power density, and 0.47A current. Meets CE, CRUUS, RoHS, and Reach compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Thin 5V Rectangular Flexible Heater
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Thin 5V Rectangular Flexible Heater
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

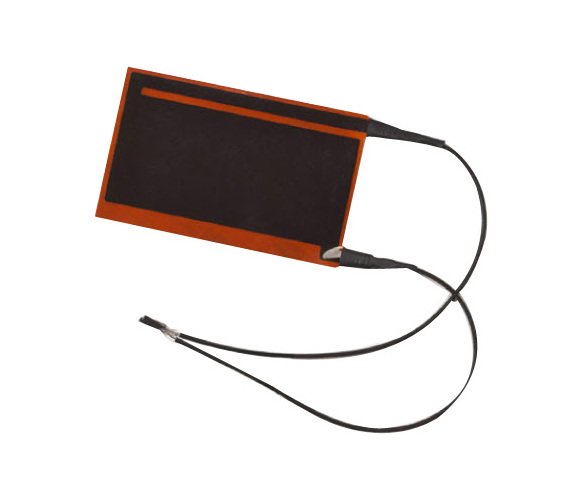

Experience efficient heating with the Pelonis Technologies Ultra-Thin 5V Rectangular Flexible Heater. Featuring Nano Carbon technology, this heater offers a power density of 1.40 W/cm² and a current of 0.47A. With a resistance of 10.6 Ohm and a temperature rise of 150ºC, this heater is both reliable and safe. It meets industry standards like CE, CRUUS, RoHS, and Reach compliance, making it ideal for institutional and government procurement. The rectangular shape and compact dimensions make it versatile for various applications, while the 210mm lead wire ensures easy installation and flexibility.
Product Specifications
Note Note
Standard Model. The delivery time for this model is shorter.If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
0.47 A
Specifications Dc Voltage
5 V
Specifications Heater Material
Nano Carbon | Silicon
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant

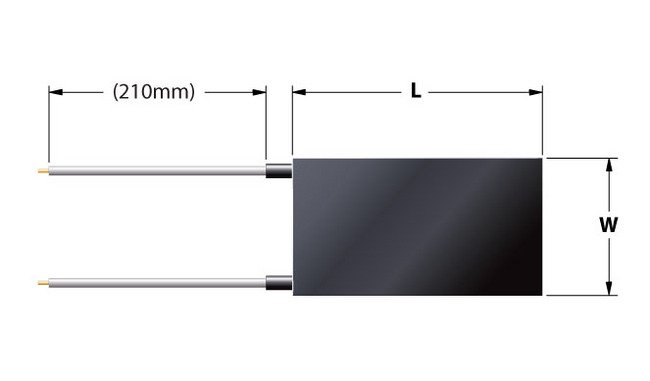

Specifications Lead Wire Length
210 mm
Specifications Length
13 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
2.36 Watts
Specifications Power Density
1.4 W/cm²
Specifications Reference Temperature Rise
150 ºC
Specifications Resistance
10.6 Ohm
Specifications Shape
Rectangular
Specifications Type
Nano Carbon (STANDARD)
Specifications Width
13 mm
