UM10 Grade 10.30mm Diameter Three Hole Carbide Rod
UM10 Grade 10.30mm Diameter Three Hole Carbide Rod
SKU:SOL-5f9302
Premium UM10 Grade 10.30mm Carbide Rod for precision machining applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
UM10 Grade 10.30mm Diameter Three Hole Carbide Rod
$89.99
Quantity: 1
Claim Your Seller Account
UM10 Grade 10.30mm Diameter Three Hole Carbide Rod
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

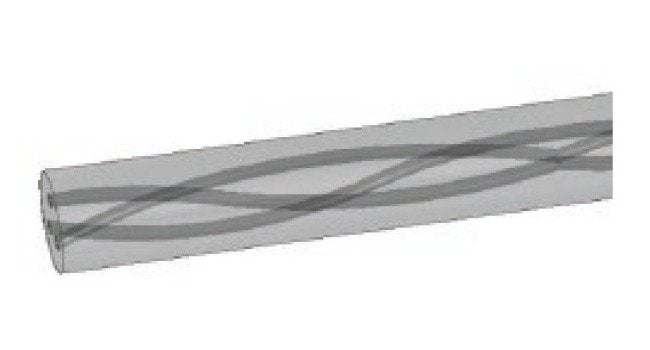

The UM10 Grade 10.30mm Diameter Three Hole 30 Degree Unground Carbide Rod is a premium choice for industrial applications requiring precision and durability. With a diameter of 10.30mm and a length of 330mm (+5mm | 0mm tolerance), this carbide rod boasts exceptional quality and performance. The three holes with precise dimensions enhance versatility and efficiency in machining operations. Crafted from high-quality carbide material, this rod ensures longevity and reliability. Ideal for professionals and institutions seeking superior carbide rods that meet stringent industry standards.
Product Specifications

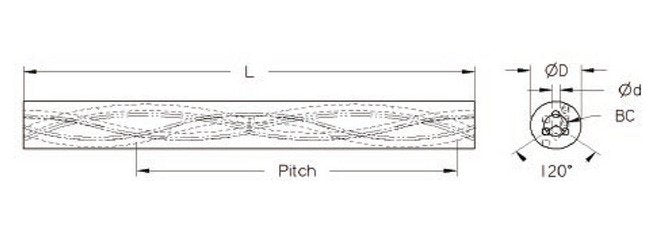

Classifications Between Centers Bc Diameter
4.95 mm
Classifications Between Centers Bc Diameter Tolerance
±0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
10.30 mm
Classifications Finish
Unground
Classifications Hole D
0.85 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
54.41 mm
Classifications Shipping Weight
0.460012355 Kilogram
