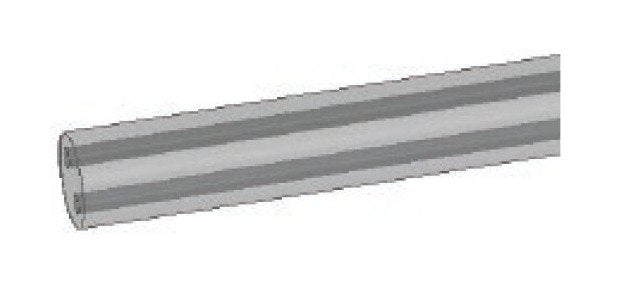

UM10 Grade 11.30mm Carbide Rod with Coolant Hole

Name: UM10 Grade 11.30mm Carbide Rod with Coolant Hole
Brand: Ultra-Met
SKU: SOL-65572b
Price: 49.99 USD
Availability: OutOfStock

SKU:SOL-65572b

High-quality UM10 Grade 11.30mm Carbide Rod with Coolant Hole for precision machining applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UM10 Grade 11.30mm Carbide Rod is a high-quality unground rod designed for precision applications. With a diameter tolerance of +0.3mm and length tolerance of +5mm, this rod ensures consistency in machining. The 1.20mm coolant hole enhances coolant delivery, reducing heat buildup during operations. Meeting stringent UM10 grade standards, this carbide rod delivers durability and performance, making it ideal for industrial and institutional use.

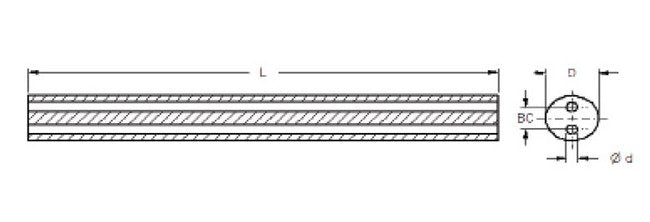

Product Specifications

Classifications Between Centers Bc Diameter

3.5 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.30 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

11.30 mm

Classifications Diameter Tolerance

+0.3 mm | 0.5 mm

Classifications Finish

Unground

Classifications Hole D

1.20 mm

Classifications Hole D Tolerance

0.15 mm

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

0.502782099 Kilogram

UM10 Grade 11.30mm Carbide Rod with Coolant Hole
