UM10 Grade 12mm Three Hole 30 Degree Carbide Rod
UM10 Grade 12mm Three Hole 30 Degree Carbide Rod
SKU:SOL-d30252
High-precision UM10 Grade 12mm Carbide Rod for industrial applications requiring accuracy and durability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
UM10 Grade 12mm Three Hole 30 Degree Carbide Rod
$59.99
Quantity: 1
Claim Your Seller Account
UM10 Grade 12mm Three Hole 30 Degree Carbide Rod
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

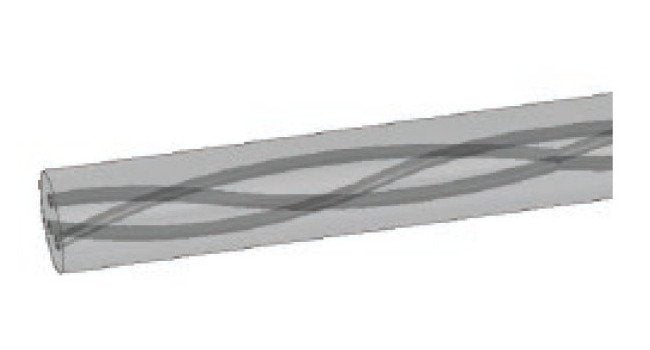

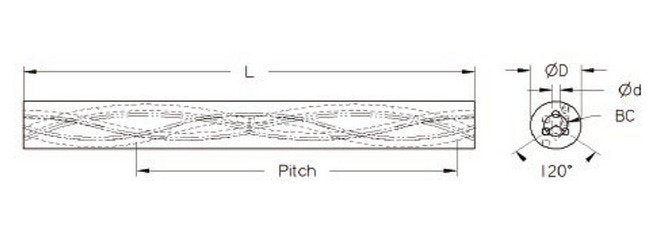

The UM10 Grade 12mm Diameter Three Hole 30 Degree Precision Ground Random Length Carbide Rod is designed for high-precision machining applications. With a polished finish, this rod offers a diameter of 12mm and a length of 330mm (+5mm | 0mm tolerance). The rod features a 1.10mm hole diameter with a tolerance of ±0.20mm, and a Between Centers (BC) Diameter of 6.05mm with a tolerance of ±0.40mm. Its pitch measures 65.30mm, meeting h6 ISO tolerance standards. Crafted from high-quality carbide material, this rod ensures durability and performance, making it ideal for industrial applications that demand precision and reliability.
Product Specifications
Classifications Between Centers Bc Diameter
6.05 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
12 mm
Classifications Finish
Polished
Classifications Hole D
1.10 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
65.30 mm
Classifications Shipping Weight
0.662417791 Kilogram
