UM10 Grade 14.00mm x 83.0mm Precision Ground Carbide Rod with Chamfer

Name: UM10 Grade 14.00mm x 83.0mm Precision Ground Carbide Rod with Chamfer
Brand: Ultra-Met
SKU: SOL-b4a24f
Price: 45.99 USD
Availability: OutOfStock

SKU:SOL-b4a24f

High-precision UM10 Grade Carbide Rod with Chamfer, 14.00mm x 83.0mm dimensions, ISO h6 compliant.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

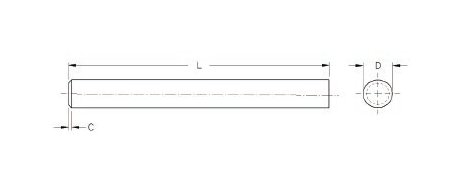

Experience unparalleled precision and durability with our UM10 Grade 14.00mm diameter and 83.0mm length solid carbide rod. This polished rod features a 45° x 0.8mm chamfer with tight tolerances, ideal for high-precision machining. Compliant with ISO h6 standards, this rod ensures consistent quality and performance. Suitable for various applications requiring precision and reliability.

Product Specifications

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Chamfer

45Âº x 0.8 mm

Classifications Chamfer Tolerance

0.1 mm

Classifications Diameter

14.00 mm

Classifications Finish

Polished

Classifications International Organization For Standardization I

Classifications Length

83.0 mm

Classifications Length Tolerance

L+1% (+0.5 Minimum)

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

0.19786187 Kilogram

UM10 Grade 14.00mm x 83.0mm Precision Ground Carbide Rod with Chamfer
