UM10 Grade 18.00mm Precision Carbide Rod with Coolant Hole
UM10 Grade 18.00mm Precision Carbide Rod with Coolant Hole
SKU:SOL-d1d1e3
High-precision 18.00mm carbide rod with coolant hole for industrial machining applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
UM10 Grade 18.00mm Precision Carbide Rod with Coolant Hole
$59.99
Quantity: 1
Claim Your Seller Account
UM10 Grade 18.00mm Precision Carbide Rod with Coolant Hole
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

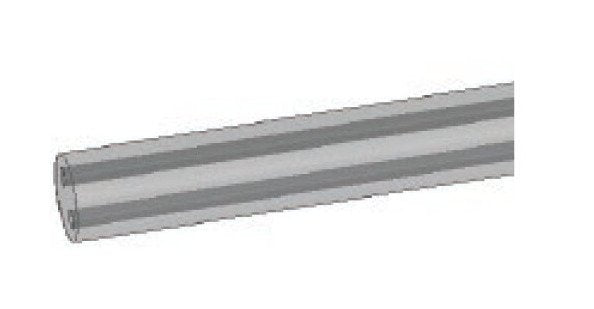

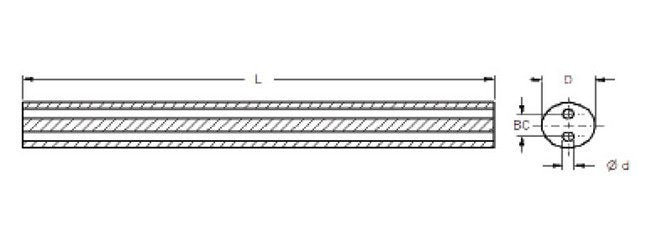

The UM10 Grade Precision Ground Carbide Rod is designed with a diameter of 18.00mm and a length of 330mm, featuring a polished finish for enhanced durability. This rod includes two straight coolant holes with a diameter of 2.00mm, meeting h6 ISO tolerance standards. Perfect for precision machining applications, it offers a Between Centers (BC) Diameter of 9.0mm with strict tolerances, ensuring superior quality and performance. Ideal for industrial and institutional usage, this rod is crafted from high-grade carbide material, guaranteeing reliability and longevity in demanding operations.
Product Specifications
Classifications Between Centers Bc Diameter
9.0 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
18.00 mm
Classifications Finish
Polished
Classifications Hole D
2.00 mm
Classifications Hole D Tolerance
0.15 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
1.301150649 Kilogram
