UM10 Grade 20mm Diameter Precision Ground Carbide Rod
UM10 Grade 20mm Diameter Precision Ground Carbide Rod
SKU:SOL-a6a9bd
Ultra-Met® UM10 Grade 20mm Dia Solid Carbide Rod for precision machining applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
UM10 Grade 20mm Diameter Precision Ground Carbide Rod
$89.99
Quantity: 1
Claim Your Seller Account
UM10 Grade 20mm Diameter Precision Ground Carbide Rod
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

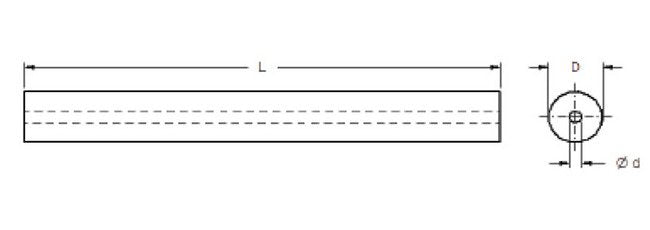

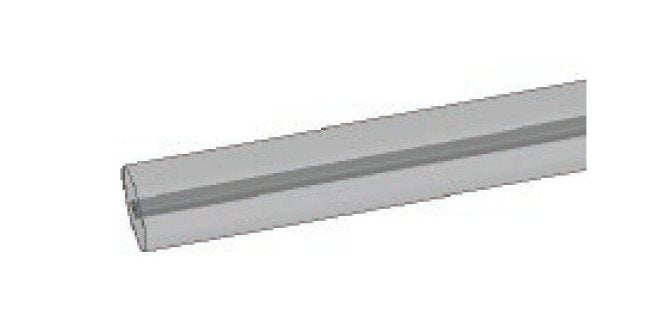

The UM10 Grade 20mm Diameter Precision Ground Carbide Rod is a top-tier solid carbide rod designed for precision machining applications. With a polished finish and a one-hole central design, this rod offers exceptional concentricity of 0.4mm. The 330mm length with a tolerance of +5mm | 0mm provides versatility in various machining tasks. Manufactured with Ultra-Met® quality, this carbide rod conforms to ISO tolerance Type h6, ensuring consistent quality and performance. A reliable choice for demanding industrial needs, this rod exemplifies durability, precision, and reliability.
Product Specifications
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Concentricity
0.4 mm
Classifications Diameter
20 mm
Classifications Finish
Polished
Classifications Hole D
3.00 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
1.597687539 Kilogram
