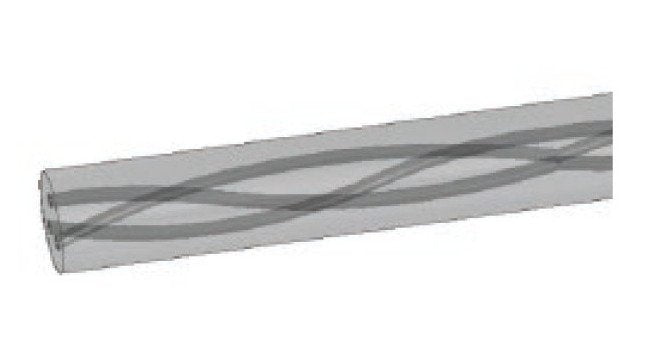

The UM10 Grade 20mm Diameter Three Hole Carbide Rod is a precision-engineered industrial tool that delivers unparalleled performance and durability. With a polished finish and a diameter of 20mm, this carbide rod boasts a length of 330mm with tight tolerances for hole diameter and between centers diameter. The UM10 carbide grade ensures high wear resistance and longevity, making it ideal for heavy-duty machining applications. This rod meets ISO tolerance Type h6 standards and is designed for maximum precision and reliability in machining operations.
Product Specifications

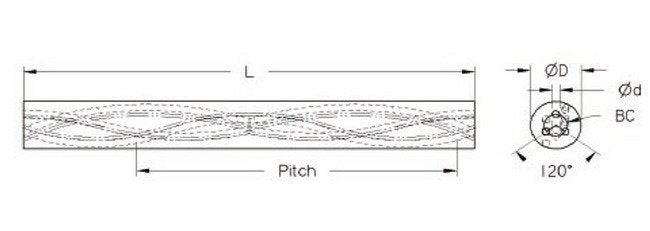

Classifications Between Centers Bc Diameter
9.85 mm
Classifications Between Centers Bc Diameter Tolerance
±0.50 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
20 mm
Classifications Finish
Polished
Classifications Hole D
1.90 mm
Classifications Hole D Tolerance
0.25 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
108.83 mm
Classifications Shipping Weight
1.724818226 Kilogram
