UM10 Grade 6mm Diameter Carbide Rod with Two Holes - Random Length

Name: UM10 Grade 6mm Diameter Carbide Rod with Two Holes - Random Length
Brand: Ultra-Met
SKU: SOL-71fffa
Price: 45.99 USD
Availability: OutOfStock

SKU:SOL-71fffa

High-precision UM10 Grade 6mm Diameter Carbide Rod with Two Holes - Ideal for industrial applications. ISO h6 compliant.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

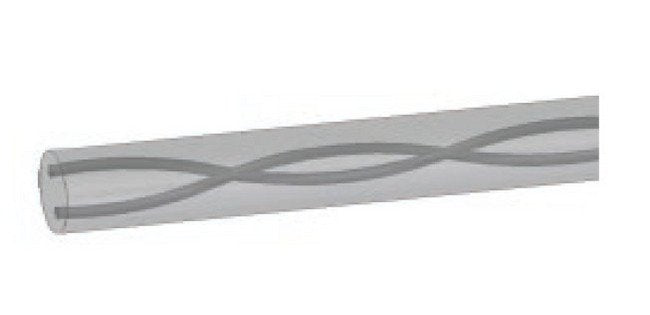

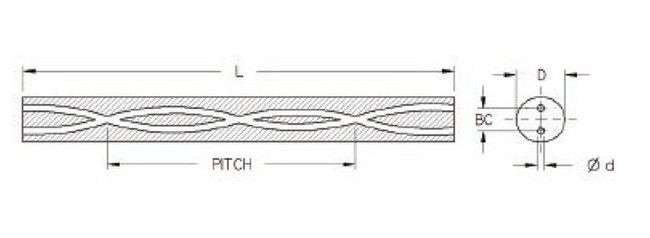

The UM10 Grade 6mm Diameter Carbide Rod boasts precision ground two holes at a 40-degree angle, providing exceptional accuracy for various industrial applications. With a polished finish and a length of 330mm (+5mm | 0mm tolerance), this carbide rod offers superior durability and wear resistance. The 0.50mm hole diameter (±0.10mm tolerance) and 2.0mm Between Centers (BC) Diameter (±0.15mm tolerance) cater to stringent requirements. Compliant with ISO tolerance type h6, this rod ensures reliability and consistency in performance, making it ideal for government and institutional procurement needs.

Product Specifications

Classifications Between Centers Bc Diameter

2.0 mm

Classifications Between Centers Bc Diameter Tolerance

Â±0.15 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

6 mm

Classifications Finish

Polished

Classifications Hole D

0.50 mm

Classifications Hole D Tolerance

0.10 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

22.46 mm

Classifications Shipping Weight

0.186285995 Kilogram
