UM10 Grade 6mm Three Hole Carbide Rod
UM10 Grade 6mm Three Hole Carbide Rod
SKU:SOL-c435ca
High-grade 6mm carbide rod for precision machining, UM10 grade, ISO h6 tolerance, 30-degree ground, 3 holes
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
UM10 Grade 6mm Three Hole Carbide Rod
$29.99
Quantity: 1
Claim Your Seller Account
UM10 Grade 6mm Three Hole Carbide Rod
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

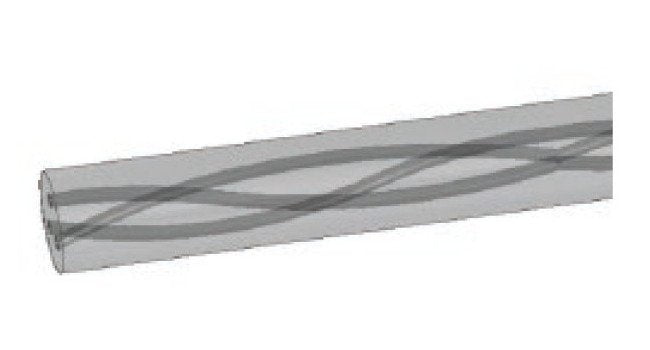

The UM10 Grade 6mm Three Hole Carbide Rod is a precision-engineered product ideal for industrial applications. With a polished finish and a 30-degree precision ground design, this rod offers excellent durability and performance. Featuring a diameter of 6mm and a length of 330mm, it meets ISO tolerance Type h6 and has a tolerance of ±0.20mm for Between Centers Diameter. The carbide grade UM10 ensures high-quality cutting performance, making it a reliable choice for machining operations. This rod is designed to meet the rigorous standards of the industry, providing long-lasting efficiency and accuracy for your projects.

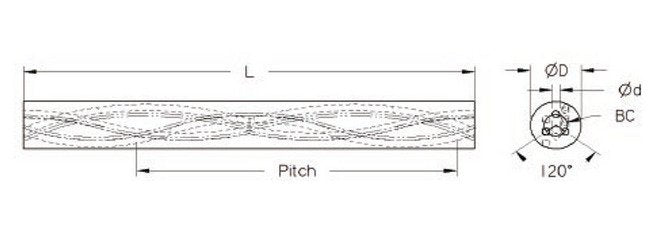

Product Specifications
Classifications Between Centers Bc Diameter
2.75 mm
Classifications Between Centers Bc Diameter Tolerance
±0.20 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
6 mm
Classifications Finish
Polished
Classifications Hole D
0.50 mm
Classifications Hole D Tolerance
0.15 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
32.65 mm
Classifications Shipping Weight
0.186285995 Kilogram
