UM10 Grade 8mm Carbide Rod with Three Holes, 30 Degree Precision Ground

Name: UM10 Grade 8mm Carbide Rod with Three Holes, 30 Degree Precision Ground
Brand: Ultra-Met
SKU: SOL-44dde3
Price: 45.99 USD
Availability: OutOfStock

SKU:SOL-44dde3

High-precision UM10 Grade 8mm Carbide Rod for industrial machining tasks. Three holes, 30-degree ground, ISO h6 tolerance.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

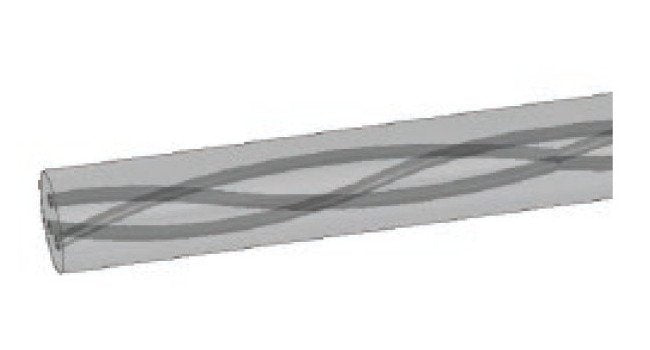

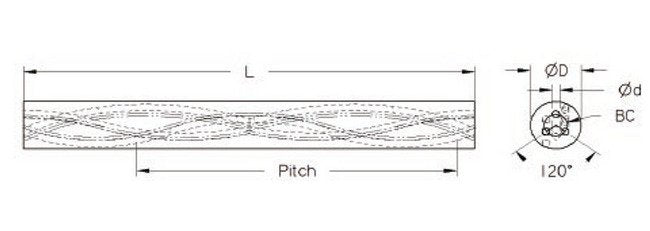

The UM10 Grade 8mm Diameter Three Hole 30 Degree Precision Ground Carbide Rod is designed for precision machining applications requiring high strength and wear resistance. Made of polished carbide with a precise diameter of 8mm and a length of 330mm (+5mm | 0mm tolerance), this rod features three 0.70mm holes with a tolerance of ±0.15mm. It meets ISO tolerance type h6, ensuring consistent quality and performance. With a pitch of 43.53mm and a BC diameter of 3.85mm (±0.20mm tolerance), this rod is ideal for demanding industrial tasks. Suitable for both consumer and institutional buyers, this rod is a reliable choice for machining projects.

Product Specifications

Classifications Between Centers Bc Diameter

3.85 mm

Classifications Between Centers Bc Diameter Tolerance

Â±0.20 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

8 mm

Classifications Finish

Polished

Classifications Hole D

0.70 mm

Classifications Hole D Tolerance

0.15 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

43.53 mm

Classifications Shipping Weight

0.307942155 Kilogram
