UM10 Grade Carbide Rod - 20.30mm Diameter, 30 Degree Three Hole, Random Length
UM10 Grade Carbide Rod - 20.30mm Diameter, 30 Degree Three Hole, Random Length
SKU:SOL-57bd77
High-quality UM10 Grade Carbide Rod for precise machining applications. 20.30mm diameter, 30-degree three-hole design.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
UM10 Grade Carbide Rod - 20.30mm Diameter, 30 Degree Three Hole, Random Length
$89.99
Quantity: 1
Claim Your Seller Account
UM10 Grade Carbide Rod - 20.30mm Diameter, 30 Degree Three Hole, Random Length
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

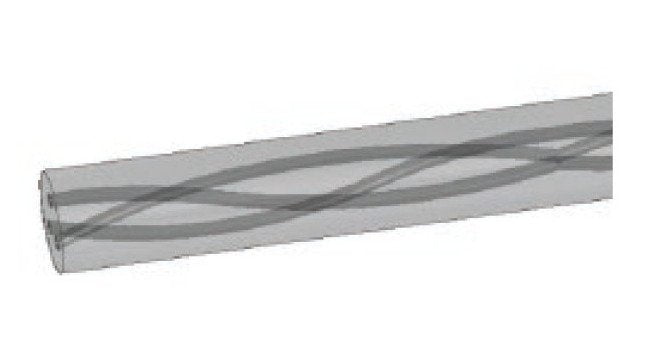

Experience unparalleled precision with our UM10 Grade Carbide Rod. Featuring a 20.30mm diameter and a 30-degree three-hole design, this unground rod ensures exceptional durability and accuracy in machining applications. With a carbide grade of UM10, it meets the highest standards for performance and reliability. Each rod is crafted with care to deliver consistent results, making it ideal for industrial and government procurement needs.

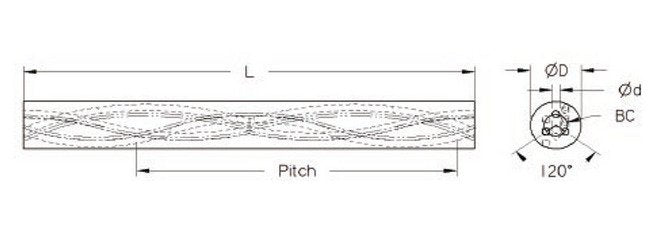

Product Specifications
Classifications Between Centers Bc Diameter
9.85 mm
Classifications Between Centers Bc Diameter Tolerance
±0.50 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
20.30 mm
Classifications Finish
Unground
Classifications Hole D
1.90 mm
Classifications Hole D Tolerance
0.25 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
108.83 mm
Classifications Shipping Weight
1.724818226 Kilogram
