UM10 Grade Carbide Rod, 20mm Diameter, Two Hole 40° Precision Ground

Name: UM10 Grade Carbide Rod, 20mm Diameter, Two Hole 40° Precision Ground
Brand: Ultra-Met
SKU: SOL-8a45fd
Price: 79.99 USD
Availability: OutOfStock

SKU:SOL-8a45fd

Enhance precision in machining with our UM10 Grade 20mm Carbide Rod for industrial applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your machining arsenal with our UM10 Grade Carbide Rod. With a polished finish and precise 20mm diameter, this rod ensures accuracy in every cut. Featuring a 40° precision ground angle, it guarantees top-notch performance in industrial settings. Compliant with ISO tolerance type h6, this carbide rod is designed for durability and consistency. Its 330mm length with a tight tolerance of +5mm | 0mm, along with a 1.50mm hole diameter, meets the stringent requirements of institutional buyers, making it a reliable choice for your tooling needs.

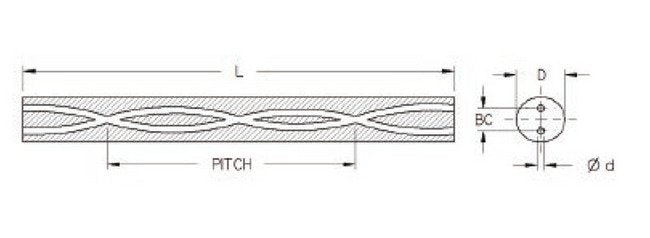

Product Specifications

Classifications Between Centers Bc Diameter

6.6 mm

Classifications Between Centers Bc Diameter Tolerance

Â±0.50 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

20 mm

Classifications Finish

Polished

Classifications Hole D

1.50 mm

Classifications Hole D Tolerance

0.25 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

74.88 mm

Classifications Shipping Weight

1.724818226 Kilogram
