UM10 Grade Precise Carbide Rod 12mm x 120mm with Chamfer

Name: UM10 Grade Precise Carbide Rod 12mm x 120mm with Chamfer
Brand: Ultra-Met
SKU: SOL-1ff6bf
Price: 49.99 USD
Availability: OutOfStock

SKU:SOL-1ff6bf

High-precision UM10 Grade Carbide Rod, 12mm x 120mm, polished finish, ISO h6 compliant

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

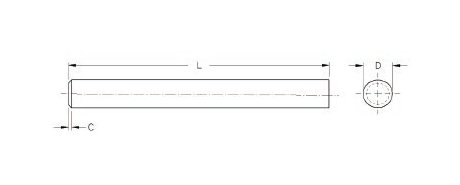

The UM10 Grade Metric Precision Ground Fixed Length Solid Carbide Rod with Chamfer is a top-quality carbide rod designed for precision machining applications. This rod features a polished finish, 12.00mm diameter, and 120.0mm length with a chamfer angle of 45º x 0.8mm. With a strict Length Tolerance of L+1% (+0.5 Minimum) and a Chamfer Tolerance of ±0.1mm, this carbide rod guarantees accuracy and consistency in performance. Compliant with International Organization for Standardization (ISO) Tolerance Type h6, this rod is ideal for a wide range of industrial applications.

Product Specifications

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Chamfer

45Âº x 0.8 mm

Classifications Chamfer Tolerance

0.1 mm

Classifications Diameter

12.00 mm

Classifications Finish

Polished

Classifications International Organization For Standardization I

Classifications Length

120.0 mm

Classifications Length Tolerance

L+1% (+0.5 Minimum)

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

0.212120992 Kilogram

UM10 Grade Precise Carbide Rod 12mm x 120mm with Chamfer
