UM10 Grade Precision Ground Carbide Rod 18mm Two Hole 40 Degree
UM10 Grade Precision Ground Carbide Rod 18mm Two Hole 40 Degree
SKU:SOL-891972
High-grade UM10 Precision Ground Carbide Rod 18mm with Two Holes, ideal for precision machining applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
UM10 Grade Precision Ground Carbide Rod 18mm Two Hole 40 Degree
$79.99
Quantity: 1
Claim Your Seller Account
UM10 Grade Precision Ground Carbide Rod 18mm Two Hole 40 Degree
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

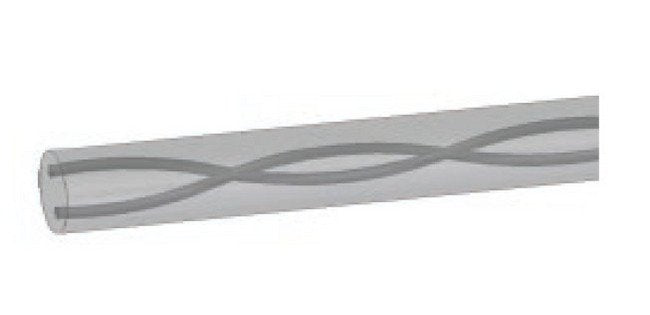

The UM10 Grade Precision Ground Carbide Rod in an 18mm diameter with two holes and a 40-degree angle is a high-quality tool designed for precision machining applications. This carbide rod, polished to perfection, offers exceptional durability and wear resistance. With a length tolerance of +5mm | 0mm and a BC Diameter Tolerance of ±0.40mm, it ensures consistent performance. Ideal for industrial manufacturing settings, this rod adheres to ISO tolerance Type h6 and meets rigorous quality standards. With its Pitch of 67.39mm and Hole diameter of 1.40mm, this carbide rod is a reliable choice for professionals seeking top-notch machining capabilities.
Product Specifications

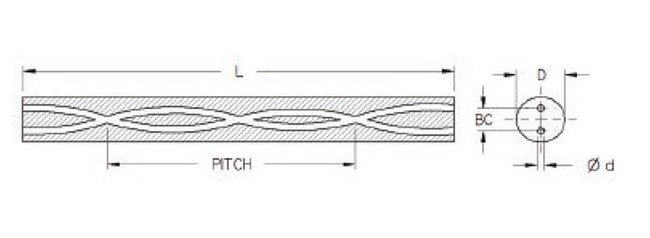

Classifications Between Centers Bc Diameter
5.9 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
18 mm
Classifications Finish
Polished
Classifications Hole D
1.40 mm
Classifications Hole D Tolerance
0.25 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
67.39 mm
Classifications Shipping Weight
1.41611572 Kilogram
