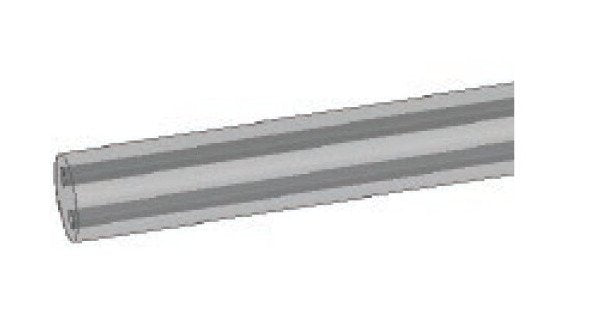

UM12 Grade 10.00mm Precision Carbide Hole Rod

Name: UM12 Grade 10.00mm Precision Carbide Hole Rod
Brand: Ultra-Met
SKU: SOL-de7531
Price: 49.99 USD
Availability: OutOfStock

SKU:SOL-de7531

High-precision UM12 Grade 10.00mm Carbide Hole Rod for accurate machining.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

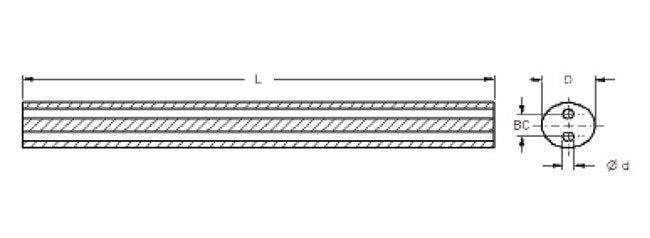

Experience precision and durability with our UM12 Grade Precision Ground Carbide Rod. With a polished finish, 10.00mm diameter, and random length of 330mm (+5mm | 0mm tolerance), this rod features a 1.40mm coolant hole for efficient cooling. The Between Centers (BC) diameter of 5.0mm with a tight tolerance of 0/-0.30mm ensures consistent performance. Compliant with ISO h6 tolerance standards, this rod is ideal for applications requiring high precision and quality.

Product Specifications

Classifications Between Centers Bc Diameter

5.0 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.30 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM12

Classifications Diameter

10.00 mm

Classifications Finish

Polished

Classifications Hole D

1.40 mm

Classifications Hole D Tolerance

0.15 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

0.419143489 Kilogram
