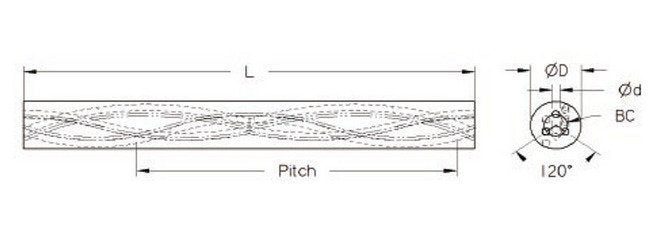

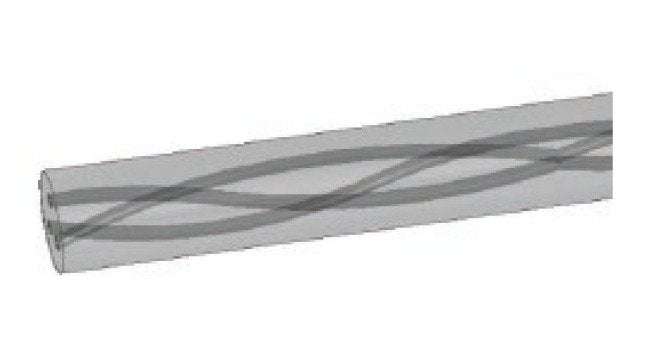

The UM12 Grade 14.30mm Diameter Three Hole 30 Degree Unground Carbide Rod is a precision-engineered tool made from high-quality carbide material. With a precise length of 330mm and tight length tolerance of +5mm | 0mm, this rod offers exceptional durability and consistency in performance. The 30-degree angled three-hole design, with a 1.40mm hole diameter and 76.18mm pitch, ensures efficient cutting and drilling operations. This rod, part of the Solid Carbide Rods > Metric category, is ideal for industrial applications requiring precision and reliability.
Product Specifications
Classifications Between Centers Bc Diameter
7.05 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
14.30 mm
Classifications Finish
Unground
Classifications Hole D
1.40 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
76.18 mm
Classifications Shipping Weight
0.878357475 Kilogram
