UM12 Grade 16.30mm Carbide Rod with Coolant Hole

Name: UM12 Grade 16.30mm Carbide Rod with Coolant Hole
Brand: Ultra-Met
SKU: SOL-63f2e6
Price: 49.99 USD
Availability: OutOfStock

SKU:SOL-63f2e6

High-quality UM12 Grade 16.30mm Carbide Rod with Coolant Hole, perfect for industrial machining projects.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

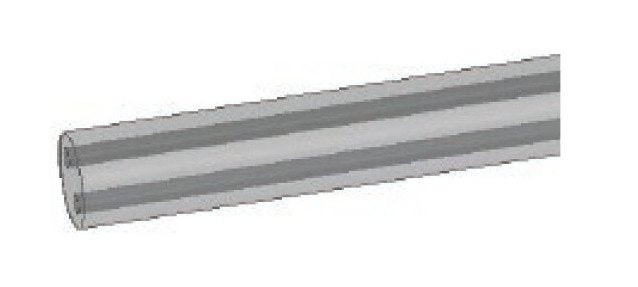

The UM12 Grade 16.30mm Diameter Unground Carbide Rod is designed to precise standards for industrial applications. Featuring a +/-0.3mm diameter tolerance and a 330mm length with +5/-0mm tolerance, this rod ensures high performance and durability. The 1.50mm coolant hole enhances efficiency. Compliant with Ultra-Met® quality, this rod is ideal for machining projects requiring precise dimensions and reliable coolant flow.

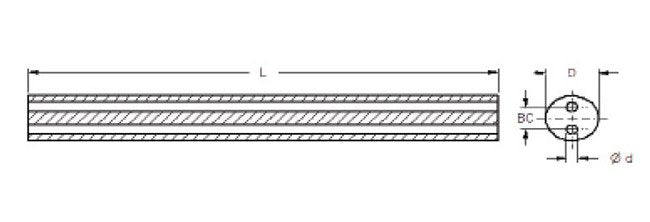

Product Specifications

Classifications Between Centers Bc Diameter

5.0 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.30 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM12

Classifications Diameter

16.30 mm

Classifications Diameter Tolerance

+0.3 mm | 0.5 mm

Classifications Finish

Unground

Classifications Hole D

1.50 mm

Classifications Hole D Tolerance

0.20 mm

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

1.035027799 Kilogram
