UM12 Grade 16.30mm Diameter Two Hole Carbide Rod
UM12 Grade 16.30mm Diameter Two Hole Carbide Rod
SKU:SOL-da1b1e
High-quality UM12 Grade 16.30mm Carbide Rod for precise machining applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
UM12 Grade 16.30mm Diameter Two Hole Carbide Rod
$69.99
Quantity: 1
Claim Your Seller Account
UM12 Grade 16.30mm Diameter Two Hole Carbide Rod
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

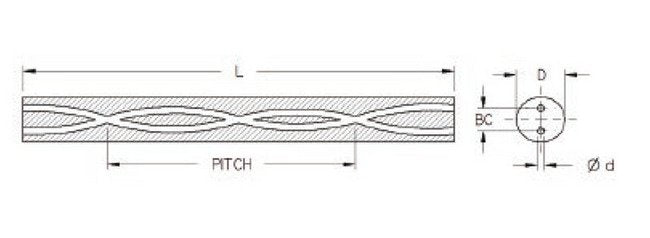

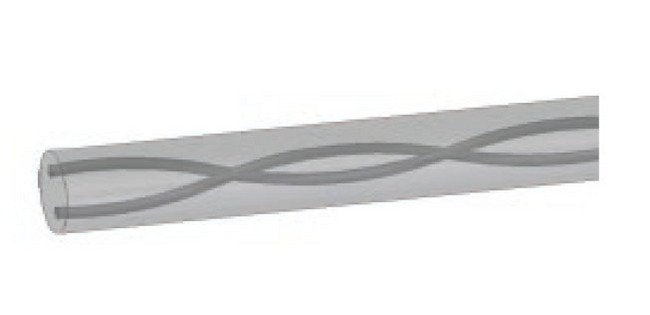

The UM12 Grade 16.30mm Diameter Two Hole Carbide Rod is a high-quality unground carbide rod designed for precision machining applications. With a diameter tolerance of +0.3mm and a length of 330mm (+5mm | 0mm tolerance), this carbide rod offers exceptional durability and wear resistance. The 40-degree two-hole design with precise hole diameter and pitch ensures accuracy in machining operations. Crafted from premium carbide material, this rod is ideal for industrial and institutional use, meeting stringent quality standards.
Product Specifications
Classifications Between Centers Bc Diameter
5.1 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
16.30 mm
Classifications Diameter Tolerance
+0.3 mm | 1.0 mm
Classifications Finish
Unground
Classifications Hole D
1.30 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
59.90 mm
Classifications Shipping Weight
1.124711199 Kilogram
