UM12 Grade 20mm Three Hole 30 Degree Carbide Rod
UM12 Grade 20mm Three Hole 30 Degree Carbide Rod
SKU:SOL-ecf144
High precision UM12 Grade 20mm Carbide Rod for durable machining applications. ISO h6 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
UM12 Grade 20mm Three Hole 30 Degree Carbide Rod
$49.99
Quantity: 1
Claim Your Seller Account
UM12 Grade 20mm Three Hole 30 Degree Carbide Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

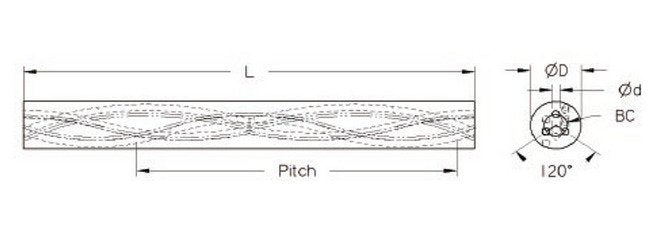

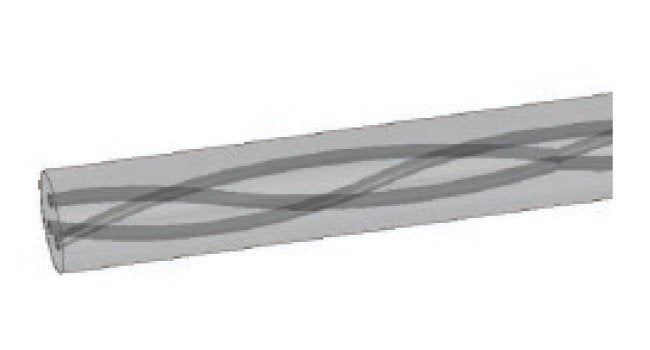

The UM12 Grade 20mm Three Hole 30 Degree Precision Ground Carbide Rod is a premium solution for machining applications requiring high precision and durability. With a polished finish, this carbide rod boasts a 330mm length with tight tolerances, ideal for consistent performance. Featuring a 1.90mm hole diameter and a pitch of 108.83mm, this rod is designed to meet the exacting standards of machining industries. The UM12 carbide grade ensures long-lasting wear resistance, making it a reliable choice for industrial applications. This carbide rod is compliant with ISO h6 tolerance type and is designed to deliver exceptional performance and reliability.
Product Specifications
Classifications Between Centers Bc Diameter
9.85 mm
Classifications Between Centers Bc Diameter Tolerance
±0.50 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
20 mm
Classifications Finish
Polished
Classifications Hole D
1.90 mm
Classifications Hole D Tolerance
0.25 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
108.83 mm
Classifications Shipping Weight
1.724818226 Kilogram
