UM12 Grade Carbide Rod 11.30 mm Diameter Two Hole 30 Degree BC Unground
UM12 Grade Carbide Rod 11.30 mm Diameter Two Hole 30 Degree BC Unground
SKU:SOL-b042c3
Precision UM12 Grade Carbide Rod for accurate machining processes with high durability and compliance with UM12 standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
UM12 Grade Carbide Rod 11.30 mm Diameter Two Hole 30 Degree BC Unground
$45.99
Quantity: 1
Claim Your Seller Account
UM12 Grade Carbide Rod 11.30 mm Diameter Two Hole 30 Degree BC Unground
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

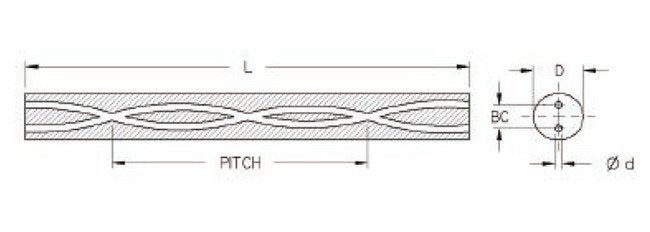

The UM12 Grade Carbide Rod features a precise 11.30mm diameter with a +/-0.3mm tolerance, ensuring accuracy in machining applications. With a 30-degree angle and unground finish, it offers enhanced durability and performance. The two-hole design, 4.9mm BC diameter, and 1.40mm hole diameter make it versatile for various industrial needs. Compliant with stringent Carbide Grade UM12 standards, this rod guarantees reliability and longevity in manufacturing processes.
Product Specifications
Classifications Between Centers Bc Diameter
4.9 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
11.30 mm
Classifications Diameter Tolerance
+0.3 mm | 1.0 mm
Classifications Finish
Unground
Classifications Hole D
1.40 mm
Classifications Hole D Tolerance
0.15 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
59.86 mm
Classifications Shipping Weight
0.565853214 Kilogram
