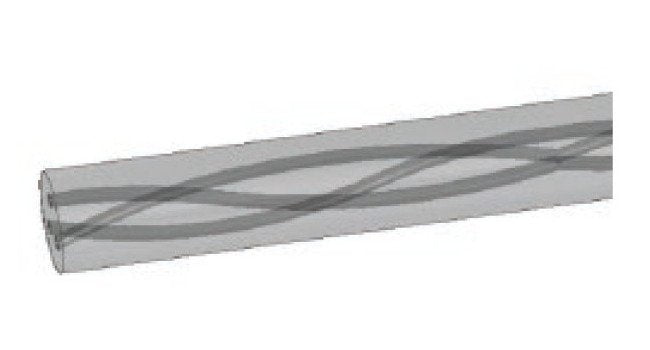

UM6 Grade 12mm 3-Hole 30° Precision Carbide Rod

Name: UM6 Grade 12mm 3-Hole 30° Precision Carbide Rod
Brand: Ultra-Met
SKU: SOL-3e98e2
Price: 49.99 USD
Availability: OutOfStock

SKU:SOL-3e98e2

Explore our premium UM6 Grade 12mm 3-Hole Precision Ground Carbide Rod for superior performance in precision engineering. Conforms to ISO Tolerance Standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

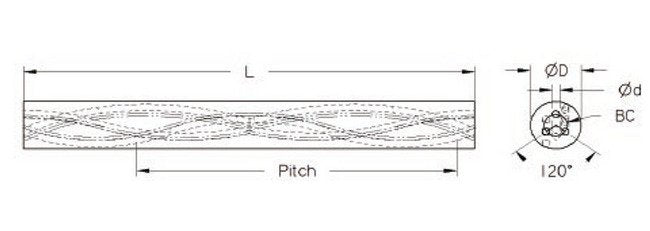

Experience unparalleled precision with our UM6 Grade 12mm 3-Hole 30° Precision Ground Carbide Rod. This meticulously crafted carbide rod boasts a polished finish, a diameter of 12mm, and conforms to h6 ISO Tolerance Standards. Each rod is 330mm long with a +5mm | 0mm length tolerance. The 1.10mm hole diameter with a tolerance of ±0.20mm ensures exceptional performance in various industrial applications, meeting rigorous quality benchmarks.

Product Specifications

Classifications Between Centers Bc Diameter

6.05 mm

Classifications Between Centers Bc Diameter Tolerance

Â±0.40 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM6

Classifications Diameter

12 mm

Classifications Finish

Polished

Classifications Hole D

1.10 mm

Classifications Hole D Tolerance

0.20 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

65.30 mm

Classifications Shipping Weight

0.662417791 Kilogram
