UM6 Grade Carbide Rod, 10mm Diameter, Two Hole 40° Precision Ground
UM6 Grade Carbide Rod, 10mm Diameter, Two Hole 40° Precision Ground
SKU:SOL-d3d15e
High-quality UM6 Grade Carbide Rod for precision machining applications, 10mm diameter, two holes at 40° angle.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
UM6 Grade Carbide Rod, 10mm Diameter, Two Hole 40° Precision Ground
$69.99
Quantity: 1
Claim Your Seller Account
UM6 Grade Carbide Rod, 10mm Diameter, Two Hole 40° Precision Ground
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

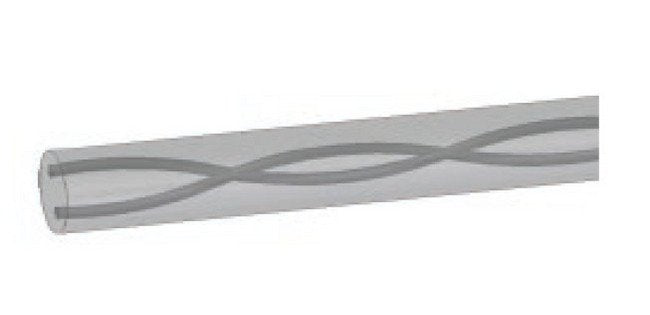

Upgrade your tooling arsenal with our UM6 Grade Carbide Rod. This precision-ground rod features a 10mm diameter, perfect for high-performance applications. The two 0.80mm holes at a 40-degree angle ensure efficient coolant flow. With a polished finish and ISO h6 tolerance, this carbide rod guarantees exceptional quality and durability. Benefit from its ±0.15mm hole tolerance and ±0.40mm between centers (BC) diameter tolerance. Ideal for industrial and institutional use, meeting rigorous procurement standards.

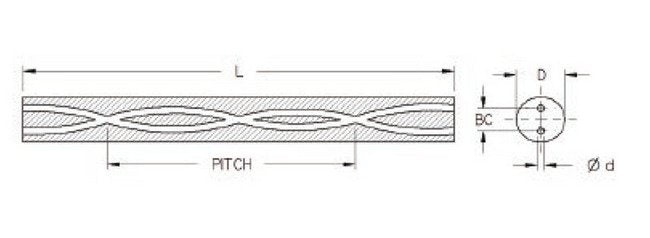

Product Specifications
Classifications Between Centers Bc Diameter
3.1 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM6
Classifications Diameter
10 mm
Classifications Finish
Polished
Classifications Hole D
0.80 mm
Classifications Hole D Tolerance
0.15 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
37.44 mm
Classifications Shipping Weight
0.460012355 Kilogram
