UM6 Grade Three Hole 30 Degree Precision Ground Carbide Rod
UM6 Grade Three Hole 30 Degree Precision Ground Carbide Rod
SKU:SOL-4c6a80
High-quality UM6 Grade Carbide Rod for precision machining, 18mm diameter, polished finish, random length, compliant with industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
UM6 Grade Three Hole 30 Degree Precision Ground Carbide Rod
$49.99
Quantity: 1
Claim Your Seller Account
UM6 Grade Three Hole 30 Degree Precision Ground Carbide Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

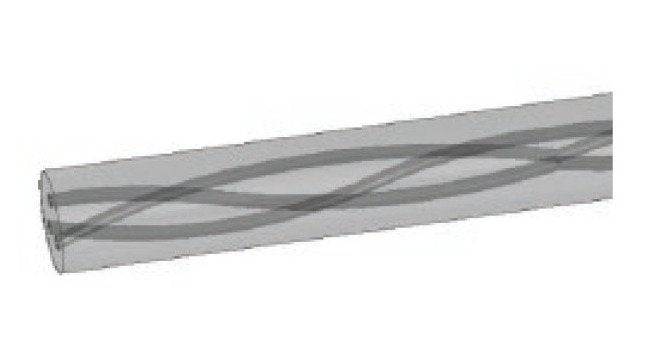

The UM6 Grade Three Hole 30 Degree Precision Ground Carbide Rod features a polished finish, 18mm diameter, random length (+5mm | 0mm tolerance), and a precise 1.70mm hole diameter. Crafted from high-quality carbide material, it maintains a Between Centers (BC) diameter of 9.25mm with h6 ISO Tolerance. With a pitch of 97.95mm, this rod is ideal for precision machining applications, offering durability and accuracy. Compliant with industry standards, this carbide rod ensures consistent performance and reliability.

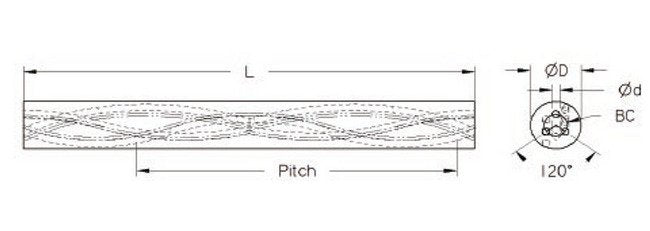

Product Specifications
Classifications Between Centers Bc Diameter
9.25 mm
Classifications Between Centers Bc Diameter Tolerance
±0.50 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM6
Classifications Diameter
18 mm
Classifications Finish
Polished
Classifications Hole D
1.70 mm
Classifications Hole D Tolerance
0.25 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
97.95 mm
Classifications Shipping Weight
1.41611572 Kilogram
