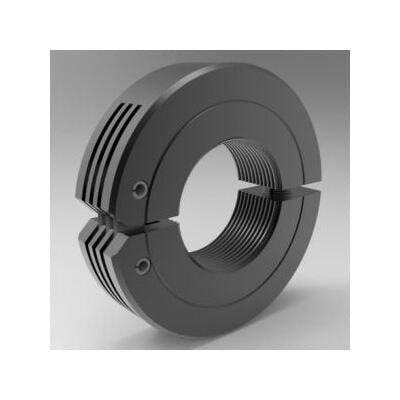

UNC/UNF Threaded Hinge Shaft Collar

Name: UNC/UNF Threaded Hinge Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-f76f30
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-f76f30

Enhance shaft stability with this UNC/UNF Threaded Hinge Shaft Collar. Easy assembly and precise axial holding power for any application.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNC/UNF Threaded Hinge Shaft Collar offers superior holding power over set-screw types, compatible with standard UNC (coarse thread) and UNF (fine thread) shafts. Ideal for quick operations in harsh environments, it eliminates fumbling, lost screws, and wasted time. Easy to assemble and reposition, this collar provides the same axial holding power as conventional collars. Available in High Strength and Low Profile styles, made of durable steel with black oxide finish. Precision-engineered in the USA, RoHS2 and REACH compliant.

Product Specifications

Dimensional Attributes Outside Diameter

2.000 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Threaded Bore Size

1-14

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.29 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

3L100FH

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786014444

UNC/UNF Threaded Hinge Shaft Collar
