UNC/UNF Threaded Shaft Collars - 1/2-13 2-Piece Split Clamp-Type
UNC/UNF Threaded Shaft Collars - 1/2-13 2-Piece Split Clamp-Type
SKU:ROU-d094f4
Precision-engineered UNC/UNF threaded shaft collars for superior clamping on 1/2-13 shafts. High Strength & Low Profile options. RoHS2 & REACH compliant.
Regular price
$26.08
Regular price
Sale price
$26.08
Unit price
per
Initiate Order
UNC/UNF Threaded Shaft Collars - 1/2-13 2-Piece Split Clamp-Type
$26.08
Quantity: 1
Claim Your Seller Account
UNC/UNF Threaded Shaft Collars - 1/2-13 2-Piece Split Clamp-Type
$26.08
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

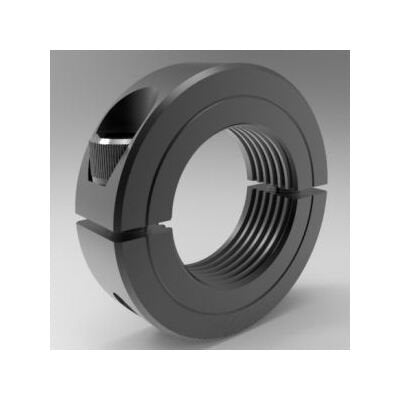

The UNC/UNF Threaded Shaft Collars are precision-engineered for standard UNF/UNC threaded shafts, offering superior clamping power without marring. These two-piece split clamp-type collars can be easily adjusted and placed anywhere on a shaft. Available in High Strength or Low Profile styles, with the Low Profile variant featuring a clamp screw that extends beyond the outer diameter. Made in the USA from high-quality steel with a black oxide finish, these collars meet RoHS2 and REACH compliance standards.
Product Specifications
Dimensional Attributes Outside Diameter
1.125 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
8-32 x 1/2
Dimensional Attributes Threaded Bore Size
1/2-13
Dimensional Attributes Width
0.406 in
Specifications Alloy
1215
Specifications Approximate Weight
0.08 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
26.08 USD
Specifications Material
Steel
Specifications Part Number
8L008C
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786012716
