UNF Standard Threaded Plugs with O-Ring Seal, Yellow (BL Series)

Name: UNF Standard Threaded Plugs with O-Ring Seal, Yellow (BL Series)
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-6a39c2
Price: 14.99 USD
Availability: OutOfStock

SKU:PLU-6a39c2

Versatile UNF Standard Threaded Plugs w/ O-Ring Seal for superior leakage protection. Ideal for institutional buyers.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

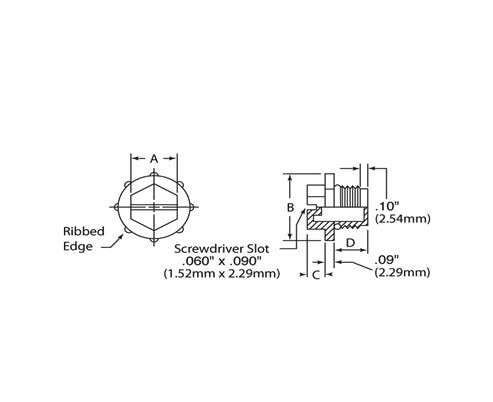

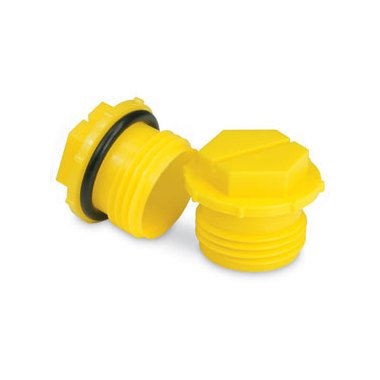

The BL Series UNF Standard Threaded Plugs offer versatile application and removal options with hand, hex wrench, or screwdriver. Enhance leak protection with the optional O-ring for a water-tight seal. Available in yellow, these plugs meet the 9/16"-18 standard thread size. Made from polypropylene, dimensions include A: 0.500 in, B: 0.75 in, C: 0.180 in, D: 0.420 in. Ideal for institutional and government use due to superior leakage protection and compliance with industry standards.

Product Specifications

Specifications Added Feature

With-O-Ring

Specifications Color

Yellow

Specifications Dimension A

0.500 in | 12.700 mm

Specifications Dimension B

0.75 in | 19.05 mm

Specifications Dimension C

0.180 in | 4.570 mm

Specifications Dimension D

0.420 in | 10.670 mm

Specifications Material

Polypropylene

Specifications To Plug Standard Thread Size

9/16"-18

UNF Standard Threaded Plugs with O-Ring Seal, Yellow (BL Series)
