UNF/UN-2A Male Stud Coupling with O-Ring - Carbon Steel, 160 Bar

Name: UNF/UN-2A Male Stud Coupling with O-Ring - Carbon Steel, 160 Bar
Brand: World Wide Metric, Inc.
SKU: FIT-346c9e
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-346c9e

Durable UNF/UN-2A Male Stud Coupling with O-Ring for 28mm tubes. Max pressure 160 bar. DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UN-2A Male Stud Coupling with O-Ring is designed for light-duty applications with a nominal operating pressure of 160 bar. Made of durable carbon steel, this fitting ensures reliable performance. With precise specifications meeting DIN 2353 standards, this coupling offers a secure fit for tube diameters up to 28mm. The equipped B4 ring enhances sealing efficiency, making it ideal for various hydraulic systems.

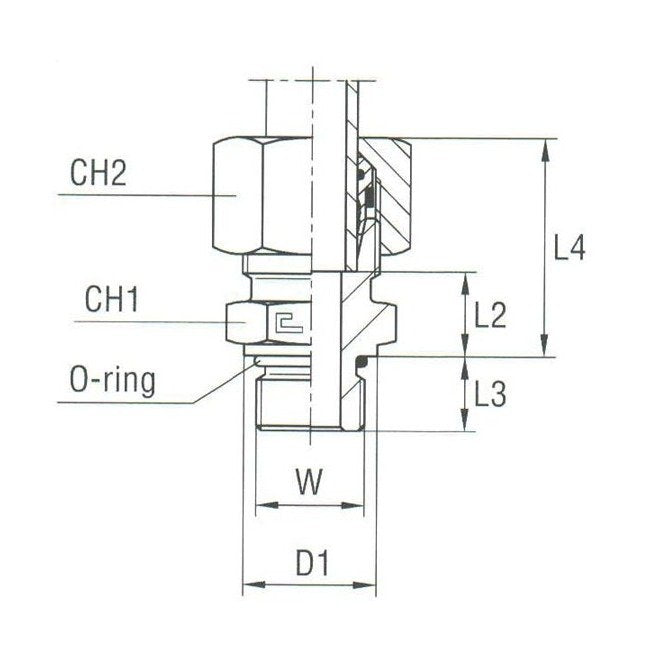

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

41 mm

Specifications D1

31.8 mm

Specifications L2

17.4 mm

Specifications L3

15.1 mm

Specifications L4

34 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

28 mm

Specifications W Thread Size

1 1/16-12
