UNF/UN-2A Male Stud Coupling with O-Ring | Carbon Steel | DIN 2353
UNF/UN-2A Male Stud Coupling with O-Ring | Carbon Steel | DIN 2353
SKU:FIT-60dd44
Durable carbon steel male stud coupling with O-ring, DIN 2353 compliant, ideal for hydraulic systems
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
UNF/UN-2A Male Stud Coupling with O-Ring | Carbon Steel | DIN 2353
$29.99
Quantity: 1
Claim Your Seller Account
UNF/UN-2A Male Stud Coupling with O-Ring | Carbon Steel | DIN 2353
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

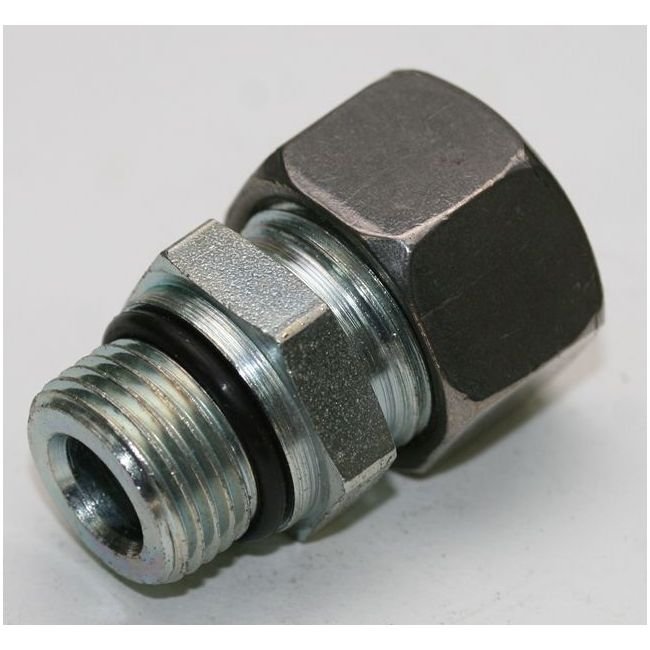

The UNF/UN-2A Male Stud Coupling with O-Ring is designed for light duty applications with a tube diameter of 28mm and a nominal operating pressure of 160 bar. Crafted from high-quality carbon steel, this coupling ensures durability and reliability. With a precise W - Thread Size of 1 1/16-12 and meeting DIN 2353 standards, it guarantees a secure and leak-free connection. The equipped B3 Ring further enhances sealing performance, making it ideal for various hydraulic system installations in industrial settings.

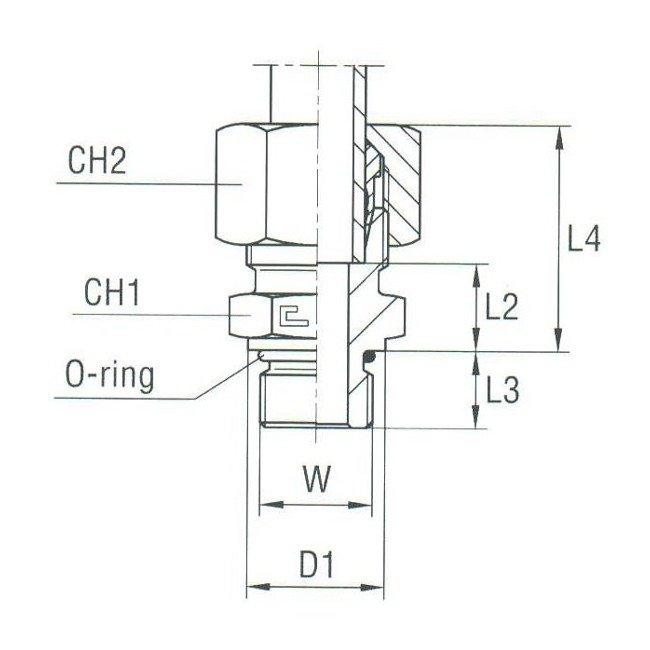

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
41 mm
Specifications D1
31.8 mm
Specifications L2
17.4 mm
Specifications L3
15.1 mm
Specifications L4
34 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
28 mm
Specifications W Thread Size
1 1/16-12
