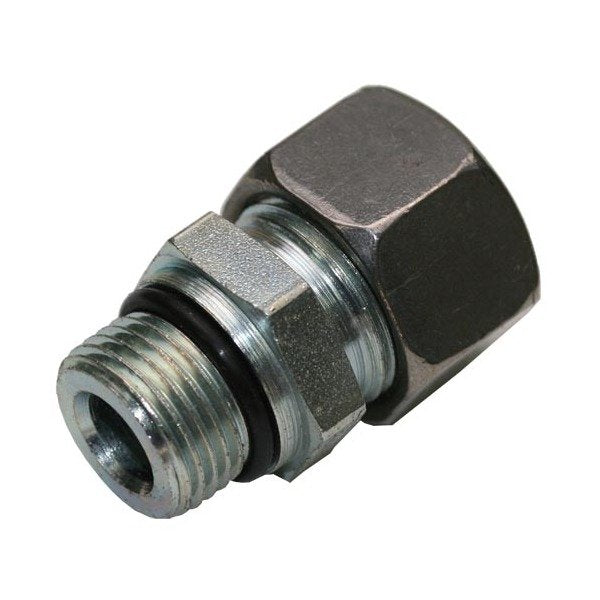

UNF/UN-2A Male Stud Coupling with O-Ring Thread B3 Ring

Name: UNF/UN-2A Male Stud Coupling with O-Ring Thread B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-14735e
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-14735e

High-quality UNF/UN-2A Male Stud Coupling with O-Ring Thread B3 Ring, DIN 2353 compliant, ensuring reliable performance in hydraulic systems.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UN-2A Male Stud Coupling with O-Ring Thread B3 Ring is designed for light-duty applications with a pressure rating of 160 bar. Crafted from high-grade stainless steel, this coupling ensures durability and reliability. With a tube diameter of 42.0 mm and precise dimensions, it meets DIN 2353 standards. Its innovative design includes L2: 18.9 mm, L3: 15.1 mm, and CH1: 55 mm dimensions, making it ideal for various hydraulic system configurations.

Product Specifications

Specifications Ch1

55 mm

Specifications Ch2

60 mm

Specifications D1

54.8 mm

Specifications L2

18.9 mm

Specifications L3

15.1 mm

Specifications L4

42 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

42.0 mm

Specifications W Thread Size

1 7/8-12
