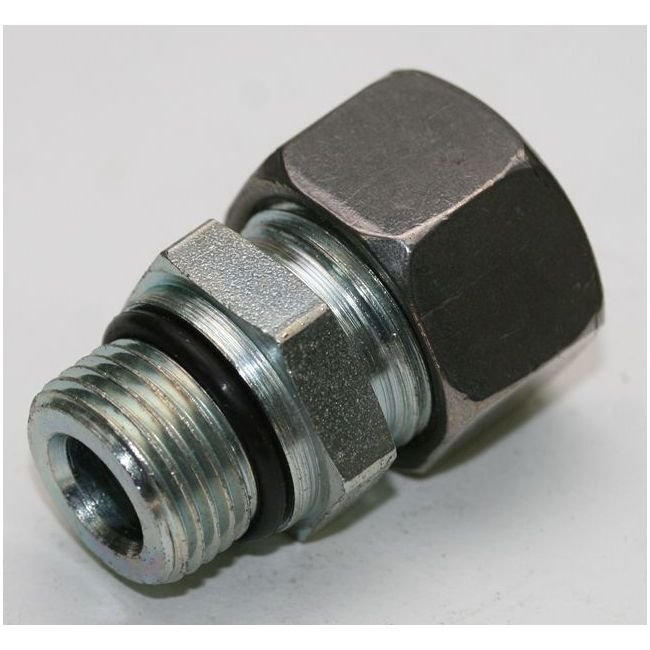

UNF/UN-2A Male Stud Coupling with O-Ring Thread - Carbon Steel, DIN 2353 Compliant
UNF/UN-2A Male Stud Coupling with O-Ring Thread - Carbon Steel, DIN 2353 Compliant
SKU:FIT-738481
Durable UNF/UN-2A Male Stud Coupling with O-Ring Thread for light-duty applications. Carbon steel construction, DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
UNF/UN-2A Male Stud Coupling with O-Ring Thread - Carbon Steel, DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
UNF/UN-2A Male Stud Coupling with O-Ring Thread - Carbon Steel, DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UNF/UN-2A Male Stud Coupling with O-Ring Thread is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from durable carbon steel, this coupling features a tube diameter of 8.0mm and meets DIN 2353 standards. With precise measurements and equipped with B4 ring, this coupling ensures secure connections and reliable performance.

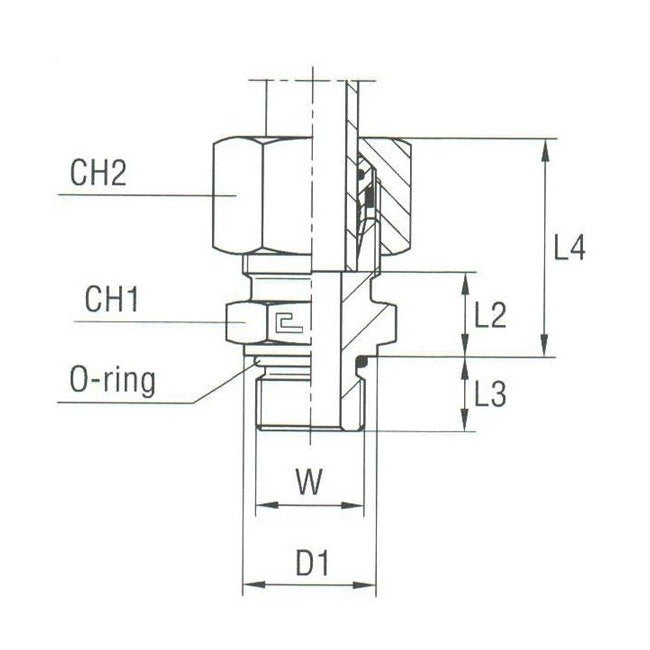

Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
17.0 mm
Specifications D1
13.8 mm
Specifications L2
9.9 mm
Specifications L3
9.1 mm
Specifications L4
25.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
Specifications W Thread Size
7/16-20
